LMDNHTC200ESH

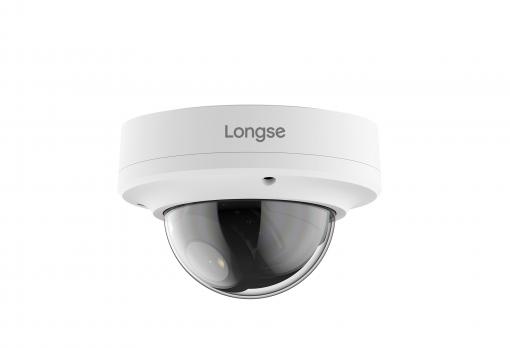

5MP Lite Outdoor IR Fixed Dome HD Camera
  • •    Video Output Mode: AHD/TVI: 5M@20fps/12.5fps,CVI: 4M@30fps;
  • •    1/2.8"SONY Starvis Back-illuminated CMOS sensor;
  • •    minimum Illumination:0.005Lux,Infrared Distance:20M;
  • •    Noise Reduction: AI-DNR;
  • •    Support OSD Menu;
  • •    Support WDR;
  • •    Housing: Metal, IP67;
  • Specification
  • Accessories
  • Download
    SPECIFICATION
    Model NO.LMDNHTC200ESHLMDNTHC200ESH
    Video Output ModeAHD/TVI: 5M@20fps/12.5fps, 4M@30fps, 2M@30fps; CVI: 4M@30fps, 2M@30fps
    Camera
    Image Sensor1/2.8"  SONY Starvis Back-illuminated CMOS sensor
    Image Resolution5M:2592*1944 4M:2560*1440 2M:1920*1080
    TV SystemPAL/NTSC
    Electronic ShutterAuto
    Minimun Illumination0.005Lux
    Scanning SystemProgressive  Scan
    Lens
    Focus Length3.6mm
    Focus ControlFixed
    Lens TypeFixed
    Night Vision
    IR Cut FilterYES
    Infrared LED14µ x 12PCS
    Infrared Distance20M
    IR StatusAGC Auto Control
    Camera Features
    StarlightYES
    Day/Night  YES/NO
    OSD Menu YES
    WDR YES
    UTC YES
    Noise Reduction AI-DNR
    Coaxial Audio/
    White Balance AUTO / MANUAL
    Gain Control AUTO
    General
    HousingMetal, IP67
    BracketNO
    Operation Temperature-10℃ ~ +60℃ RH95% Max
    Storage Temperature-20℃ ~ +60℃ RH95% Max
    Power SourceDC12V±10%, 450mA
    Dimension94(W) x 94(H) x 72(D)mm
    Weight400g

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
