SPECIFICATION | |

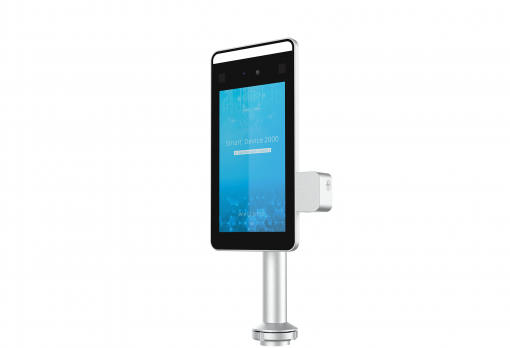

Model NO. | FK02GYW |
System | |
Main Processor | SV810 |
Operating System | Embedded LINUX |
RAM | DDR3 512MB |
ROM | EMMC 8GB |
Screen | |
Dimensions | 7 inch IPS HD LCD screen |
Resolution | 600*1024 |
Camera | |
Type | 2MP camera |
Sensor | 1/2.9" GC2053 |
Resolution | NIR 800*600 15fps |
Lens | 4.51mm |
Camera | |
Type | Daily camera |
Sensor | 1/2.9" GC2093 |
Resolution | Color 1920*1080 30fps |
Lens | 4.51mm |
Body temperature detection | |
Temperature Range | 35.7℃-42℃ |
Temperature Measuring Distance | 0.5-1.3m, Recommended distance 0.75m |
Temperature Measurement Accuracy | ± 0.3℃ |
Face recognition | |
Detection Type | Mask detection only |
Face Recognition Distance | 0.5-2m |
Face database Capacity | Max support 30,000 faces |
Recognition Angle | Vertical 61°, Horizontal 36° |
Occlusion | Ordinary glasses and short fringe have no effect on recognition. |
Expression | Under normal circumstances, slight expressions do not affect recognition. |
Response Speed | About 200ms |
Face Exposure | Support |
Local Storage | Support storage of 25,000 records |
Recognition Area | Full screen recognition |
Upload Method | TCP, HTTP, MQTT |
Network Functions | |
Network Protocol | IPv4, TCP/IP, HTTP, HTTPS, MQTT, RTSP, SMTP, NTP, Onvif |
Interface Protocol | Private protocol |
Security Mode | Authorized password |
Event Linkage | Voice broadcast, Abnormal event upload to the platform, Alarm Output |
System Upgrade | Support remote upgrade |
Accessories | |
Supplementary Light | IR light, LED white light |
Identification Module | / |
Audio Out | Built in Speaker support voice broadcast after successful recognition |
Network Module | / |
Interface | |
Network Interface | RJ45 10M/100M Network Adaptation |
Alarm Input | / |
Alarm Output | Support 1 channel |
Relay Output | Support |
RS485 Interface | Support(Reserved interface, no peripheral devices are supported currently) |
Wiegand Interface | Support Wiegand 26, 34 protocols |
USB | 1*USB 2.0 |
TTL Serial | TTL DC 3.3V |
TF Card Slot | / |
HDMI | / |
Reset key | Support |
Anti-disassembly Switch | / |
General | |
Housing | Aluminum alloy, Ultra-white tempered glass panel |
Operating Temperature | -10℃~50℃(Enable temperature measuring 8 ° C ~ 33 ° C) |
Working Humidity | 10% -90% Non-condensing |
Storage Temperature | -40 ° C ~ 70 ° C |
Storage Humidity | 5% -95% Non-condensing |
Protection Level | / |
Power Supply | DC12V |
Power Dissipation (maximum) | ≤ 8 W |
Dimensions (mm) | 220 (W) * 112 (H) * 24 (T) |
Bracket size (mm) | φ50x188.5(Installation hole diameter φ33) |
Installation Method | Desktop installation/Floor installation/Gate machine installation/Column installation/Wall installation |
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
