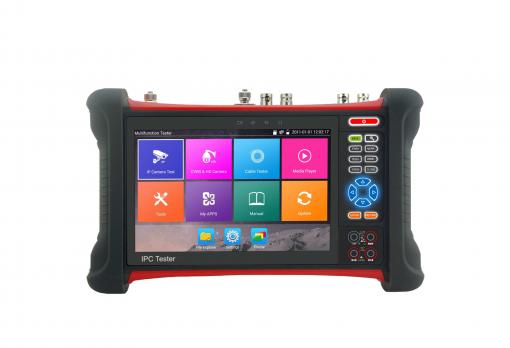

    LCDItem series                       LS-X7MOVTADHS Pro
    DisplayNew 7 inch retina touch screen , 1920*1200 resolution
      Video ModeCVBS1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
    Support Analog camera testing
    PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
    CVBS loop testthe tester send and receive color bar generator signal , check BNC cable
    IP camera test 8K H.265/H.264IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK
    Rapid VideoAuto view the video, create testing report
    Hik test toolactivate hikvision camera , modify the user name, password and IP parameters
    Dahua test toolDahua camera test, modify the user name, password and IP parameters
    Coaxial HD test8MP TVI camera test,3840 x 2160P 15 FPS, UTC control/ call OSD menu
    8MP CVI camera test,3840 x 2160P 12.5/15 FPS,UTC control d call OSD menu
    8MP AHD test, 3840 x 2160P 15, UTC control d call OSD menu
    8MP HD-SDI/EX-SDI camera test, 3840 x 2160P 20/30 fps, UTC control d call OSD menu
    HDMI input/output1 channel 4K 30 FPS HDMI input,4K 60 FPS HDMI output
    Zoom Image4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back
    Analog Video outcolor bar generatorOutput one channel PAL/NTSC color bar video signal for testing monitor or video cable
    Cable testerCable tracersearch BNC cable, network cable and telephone cable from the mess cables
    UTP cable testTest UTP cable connection status and display on the screen. Read the number on the screen
    RJ45 cable TDR testTest cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range 180M.
    Power output48V PoE power output, max power 30W
    DC12V /3A power output
     VGA InputSupport VGA input
    HD Coax video levelHD Coax video level meter, for peak video signal level, SYNC signal level measurement.
    TesterPlayscreen projection: tester, mobile phone and PC display at the same time (For android version mobile phone)
    Network testTrace route, Link monitor , DHCP server, port flashing , Ping test
    Digital MultimeterDC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement, support record data and create report
    Optical power meter Wavelength:1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ~ +10 dBm, for optical power testing and Fiber link loss relative measurement
    Visual fault locator10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 10KM
    TDR cable test For BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM
    Video level meter For PEAK ,SYNC signal level, color burst chroma level measurement
    Wi-FiBuilt in WIFI,speeds150M,display wireless camera image
    Audio test1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
    Data monitorCaptures and analyzes the command data from controlling device, also can send hexadecimal
    PoE testMeasurement POE switch or PSE power supply voltage and cable connection status
    Drop-down menuYou can select PoE power switch ,IP setting,CVBS, LAN info , HDMI IN functions etc in any interface
    External power supplyDC 12V 2A
    BatteryBuilt-in 7.6V Lithium polymer battery ,7800mAh
    RechargeableAfter fast charging 4 hours, normal working time 16 hours
    Operation settingOSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc
    Auto off1-30 (mins)
    Working Temperature-10℃---+50℃
    Working Humidity30%-90%
    Dimension/Weight255mm x 160mm x 46mm / 0.95Kg

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
