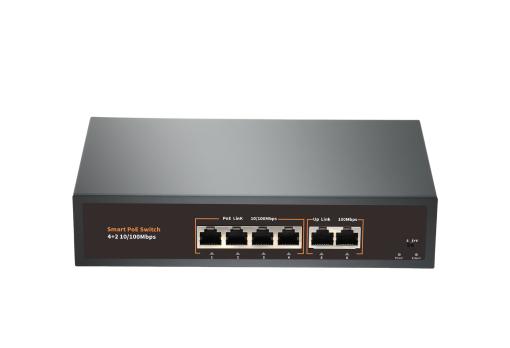

HT42FA
4-PORT POE SWITCH
  • •    Extend switch is default OFF, state(1~4 port):100m
  • •    Extend switch is ON, state:(1~4 port:): 250m
  • •    WAN1/2 port: 100m
  • •    Transmission Medium:Cat5/5e/6 standard network cable
  • Specification
  • Accessories
  • Download
    PowerPower Adapter VoltageInput:110-240V/AC 50-60Hz
    The maximum power supply machine78W(52V 1.5A)
    Network ConnectorNetwork Port4*10/100mbps POE port
    2*10/100mbps UP Link port
    Transmission DistanceExtend switch is default OFF, state(1~4 port):100m
    Extend switch is ON, state:(1~4 port:): 250m
    WAN1/2 port: 100m
    Transmission MediumCat5/5e/6 standard network cable
    Network SwitchNetwork StandardIEEE802.3/10BASE-T Ethernet, IEEE802.3u/100BASE-TX Ethernet,IEEE802.3x Flow Control, IEEE802.3af, IEEE802.3at
    Forwarding ModeStore and forward
    Forwarding Rate10BASE-T:14880PPS/port, 100BASE-tx:14800pps/port
    Network Medium10/100BASE-TX:5 class and above non shielded twisted pair
    MAC address lis1K
    Backplane bandwidth1.6Gbps
    PoE StandardIEEE 802.3af, IEEE 802.3at
    Power Over EthernetPoE Power Supply Type End-Span(1/2+,3/6-)
    PoE Power Consumptionaf,at Adaptive (every port)
    Port FunctionPower priority mechanism, fast and forward, MAC automatic learning and aging
    IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
    LED Indicator/LINK/ACT.100Mbps;POE Status Indicator; Power indicator;Extender
    EnvironmentalWorking temperature-10℃~55℃
    Storage Temperature-40℃~85℃
    Humidity5%-90% , non-condensing
    MechanicalDimension (L x W x H) mm220*140*40
    Weight1kg

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
