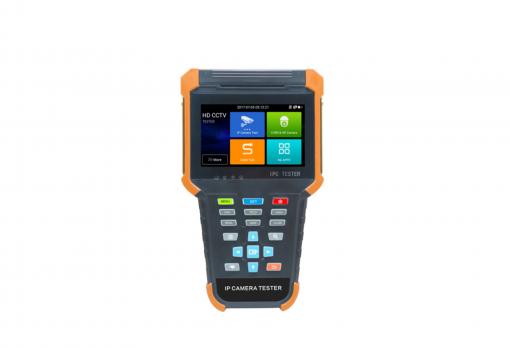

LS-X4ADH
4K H.265 Tester
- • 4 inch touch screen display, 800*480 resolution
- • H.265/H.264, 4K video display via mainstream
- • Support IP/AHD/CVI/TVI/CVBS camera test
- • Dual 1000M NETWORK PORT (NEW)
- • Support 8MPTVI/8MPCVI/8MPAHD camera test
| Display | New 4inch IPS touch screen cctv tester 800x480 resolution |
| Network port | 10/100/1000M auto adjust, RJ45/Dual 1000M Ethernet port |
| WIFI | Built in WIFI, speeds150M, allows you to connect to a wireless network and view IP cameras |
| H.265 Main stream test | New hardware decoding, 4K H.265/H.264 camera image display by mainstream testing |
| IP discovery | Auto-scan the whole network segment camera IP |
| Rapid ONVIF | Search camera quickly, auto log in and display image from the camera, activate Hikvision camera |
| Hik test tool | Activate Hikvision camera, display image from the camera, modify IP, username and password parameters etc |
| DH test tool | Activate Dahua camera, modify IP, username and password parameters etc |
| IP camera type | ONVIF,ONVIF PTZ, Dahua IPC-HFW2100P, Hikvision DS-2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, RTSP Viewer |
| AutoHD* | automatic recognition of HD coaxial cameras |
| CVI video signal test | 1 channel CVI input（BNC interface, resolution support 720p 25,30,50,60fps/ 1080p 25,30fps/2560x1440p 25fps,30fps/3840 x 2160 12.5/15 FPS |
| TVI video signal test | 1 channel TVI input（BNC interfce）,resolution support 720p 25,30,50,60fps/ 1080p 25,30fps /2048x1536p 18,25,30fps , 2560x1440p 15,25,30fps/ 2688x1520p 15fps , 2592x1944p 12.5,20fps/3840 x 2160 12.5/15 FPS |
| AHD video signal test | 1 channel AHD input（BNC interface）,resolution support 720p 25,30fps / 1080p 25,30fps / 2048x1536p 18,25,30fps , 2560x1440p 15,25,30fps / 2592x1944p 12.5,20fps, 3840x2160P 15fps, UTC control and call OSD menu |
| Analog video test | 1 channel BNC Input & 1 channel BNC Output , NTSC/PAL (Auto adapt) |
| Video level meter | PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement for cvbs camera. |
| Zoom Image | Supports Analog and IP camera image zooming & movement |
| Snapshot, Video record and playback | Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
| HDMI IN | Support 720x480P/60fps720x576P/60fps, 1280x720P/25/30/ 50/60fps, 1920x1080P/25/30/50/60fps, 1920x1080I/50/60fps, 800x600P/60fps,1024x768P/60fps, 1280x1024P/60fps. |
| 12V/3A power output | Output DC12V/3A power to camera |
| RJ45 cable TDR test | RJ45 cable TDR test and cable quality test, to test cable pair status, length, attenuation reflectivity, impedance, skew and other parameter |
| PoE power output | 48V PoE power output, Max power 25.5W |
| Screen management | Lite mode and normal model available. Under normal mode, you can change icons sequence and self-define the number of icons in each page |
| Theme | Self-define icons, desktop and application interface background, modify interface sliding effect |
| Drop-down menu | Includes PoE power switch ,IP setting, HDMI IN functions,CVBS,etc |
| Audio test | 1 channel audio signal input and 1 channel audio signal output to connect headphones |
| PTZ control | Support RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc |
| Color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) |
| UTP Cable tester | Test UTP cable connection status and display on the screen. Read the number on the screen |
| Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal |
| Network test | IP address scan, linkscan, and Ping test. Quickly search the for IP camera’s IP address on your network |
| PoE /PSE voltage test | Measures PoE switch voltage and displays pin configuration |
| POWER | |
| External power supply | DC 12V 2A |
| Battery | Built-in 7.4V Lithium polymer battery ,4000mAh |
| Rechargeable | After charging 4~5 hours, normal working time 10 hours |
| Parameter | |
| Operation setting | OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc |
| Auto off | 1-30 (mins) |
| General | |
| Working Temperature | -10℃---+50℃ |
| Working Humidity | 30%-90% |
| Dimension/Weight | 204mm×123mm×38mm / 0.6kg |
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
