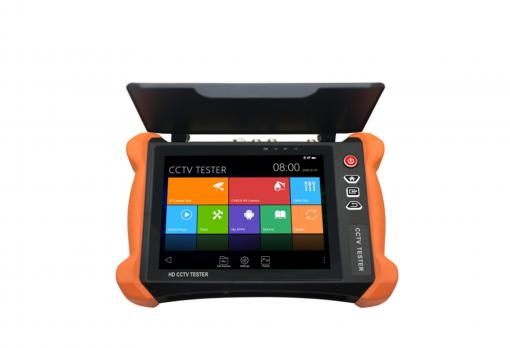

LS-X9ADH
4K H.265 Tester
- • 8 inch retina touch screen, 2048*1536 resolution
- • With anti-sunlight cover
- • H.265/H.264, 4K video display via mainstream
- • Support IP/AHD/CVI/TVI/CVBS camera test
- • Support 4K TVI, 5MP AHD, 4K CVI & 4K EX-SDI camera test
| Display | New 8 inch retina touch screen, 2048x1536 resolution |
| Network port | 10/100/1000M auto adjust, RJ45, Dual LAN port |
| WIFI | Built in WIFI, speeds 433M, allows you to connect to a wireless network and view IP cameras, Operating Frequencies: 2.4G and 5G |
| Professional Wifi Analyzer | Detect the surrounding wifi signal and signal strength, support 2.4G and 5G frequency band. |
| 8K H.265 Mainstream test | New hardware decoding, 8K H.265/4K H.264 camera image display by mainstream testing |
| IP discovery | Auto-scan the whole network segment camera IP |
| Rapid ONVIF | Search camera quickly, auto log in and display image from the camera, activate Hikvision camera..Support 4 channels H.264/1080P. |
| Hik test tool | Batch activate Hikvision camera, display image from the camera, modify Channel, batch modify IP, username and password parameters etc. |
| DH test tool | Batch activate Dahua camera, batch modify IP, modify Channel, username and password parameters etc. |
| IP camera type | ONVIF, ONVIF PTZ, Dahua IPC-HFW2100P, Hikvision DS-2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, RTSP Viewer |
| AutoHD* (Optional) | Auto-recognize the resolution and Auto-display the image of the connected camera. Support coaxial PTZ control and call OSD menu, support up to 8MP TVI/CVI/AHD and CVBS cameras. |
| 4K HD Coaxial level test | Through hardware high-speed sampling and processing technology, accurately measure video peak level, sync leveland burst level. By one key to create testing report. |
| CVI video signal test | 1 channel CVI input（BNC interface, resolution support 720P 25/30/50/60fps, 1080P 25/30fps, 2560x1440P 25/30fps, 2592x1944 20fps, 2880x1920 20fps, 3840 x 2160 12.5/15 fps. UTC control and call OSD menu |
| TVI video signal test | 1 channel TVI input（BNC interfce）,resolution support 720P 25/30/50/60fps, 1080P 25/30fps, 2048x1536P 18/25/30fps, 2688x1520P 15fps, 2560x1440P 15/25/30fps, 2560x1944P 12.5/20fps, 3840 x 2160 12.5/15 fps, UTC control and call OSD menu |
| AHD video signal test | 1 channel AHD input（BNC interface）,resolution support 720P 25/30fps, 1080P 25/30fps, 2048x1536P 18/25/30fps, 2560x1440P 15/25/30fps, 2560x1944P 12.5/ 20fps, 3840 x 2160P 15 fps, UTC control and call OSD menu |
| Analog video test | 1 channel BNC Input & 1 channel BNC Output , NTSC/PAL (Auto adapt) |
| Video level meter | PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement for CVBS camera. |
| Zoom Image | Supports Analog and IP camera image zooming & movement |
| Snapshot, Video record and playback | Capture current images and record live video as JPG file. Media player will view photos and playback video |
| HDMI IN | HDMI IN, Support 4K 60FPS, 3840x2160P 60FPS, 720×480P/720×576P/1280×720P/1920×1080P /1024×768P/1280×1024P /1280×900P/1440×900P. |
| HDMI output | 1 channel HDMI output, supports up to 4K 60FPS, 3840x2160P 60FPS. |
| 24V 2Apower output | Output DC24V/2A power to camera |
| 12V 3A power output | Output DC12V/3A power to camera |
| USB 5V power output | 5V 2Apower output |
| PoE power output | 48V PoE power output, Max power 30W |
| Screen management | Under normal mode, you can change icons sequence and self-define the number of icons in each page |
| Theme | Self-define icons, desktop and application interface background, modify interface sliding effect. |
| drop-down menu | PoE power switch, IP setting, WLAN switch, HDMI IN functions etc screen lock, password lock screen or pattern lock |
| Audio test | 1 channel audio signal input and 1 channel audio signal output to connect headphones |
| PTZ control | SupportRS485 control, Baud 600- 115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc |
| Color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green, blue, white and black color ) |
| UTP Cable tester | Test UTP cable connection status and display on the screen. Read the number on the screen |
| RJ45 cable TDR test | RJ45 cable TDR test and cable quality test, to test cable pair status, length, attenuation reflectivity, impedance, skew and other parameter. |
| Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal |
| NET TOOL PRO | NET TOOL PRO-Cable Test, Wireless Tool, Link Tool, Full Duplex Detection, PING, IP Scan, DHCP Server, PPPOE, OUI Search, Socket Tool, DNS, LLLDP. |
| Cable tracer | Using the advanced multiplexing technique, the cable tracer and cable test in the same interface. Find a connected cable from a bundle of cables using audio tones |
| PoE /PSE voltage test | Measures PoE switch voltage and displayspin configuration |
| Cable length | For cable’s Open test , such as BNC cable ,UTP cable ,telephone cable test max test length up to 3KM, (Cable’s short-circuit test not supported ) |
| BNC attenuation test | Through hardware high-speed sampling and processing technology, test the BNC coaxial cable transmission attenuation value, detect the transmission quality of BNC cable. |
| POWER | |
| External power supply | DC 12V 2A |
| Battery | Built-in 7.4V Lithium polymer battery, 7000 mAh |
| Rechargeable | Fasting charge, after charging 3.5 hours, normal working time 13 hours |
| Parameter | |
| Operation setting | Capacitive touch screen, OSD menu, select your desired language: English,Chinese, Korean, Russian, Italian or Polish, etc |
| Auto off | 1-30 (mins) |
| General | |
| Working Temperature | - 10℃---+50℃ |
| Working Humidity | 30%-90% |
| Dimension/Weight | 264mmx 182mmx 43mm / 1Kg |
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
