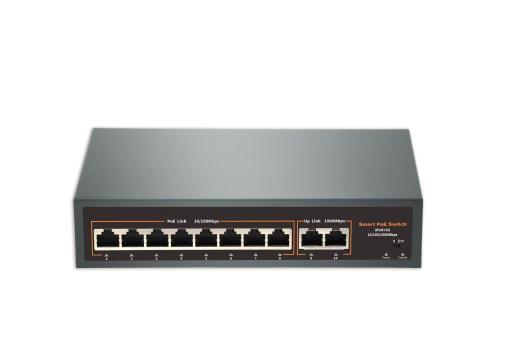

HT82GA
8-PORT POE SWITCH
  • •    Extend switch is default OFF, state(1~4 port):100m
  • •    Extend switch is ON, state:(1~4 port:): 250m
  • •    WAN1/2 port: 100m
  • •    Transmission Medium:Cat5/5e/6 standard network cable
  • Specification
  • Accessories
  • Download
    PowerPower Adapter VoltageInput:110-240V/AC 50-60Hz
    The maximum power supply machine120W(52V 2.3A)
    Network ConnectorNetwork Port8*10/100mbps POE port
    2*100/1000mbps UP Link port
    Transmission DistanceExtend switch is default OFF, state(1~4 port):100m
    Extend switch is ON, state:(1~4 port:): 250m
    WAN1/2 port: 100m
    Transmission MediumCat5/5e/6 standard network cable
    Network SwitchNetwork StandardIEEE802.3/10BASE-T Ethernet, IEEE802.3u/100BASE-TX Ethernet, IEEE802.3x Flow Control, IEEE802.3af, IEEE802.3at
    Forwarding ModeStore and forward
    Forwarding Rate100Mbps:14880pps, 1000Mbps:14800pps
    Network Medium10/100BASE-TX:5 class and above non shielded twisted pair
    MAC address lis2K
    Backplane bandwidth10Gbps
    PoE StandardIEEE 802.3af, IEEE 802.3at
    Power Over EthernetPoE Power Supply Type End-Span(1/2+,3/6-)
    PoE Power Consumptionaf,at Adaptive (every port)
    Port FunctionPower priority mechanism, fast and forward, MAC automatic learning and aging
    IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
    LED Indicator/LINK/ACT.100Mbps;POE Status Indicator; Power indicator;Extender
    EnvironmentalWorking temperature-10℃~55℃
    Storage Temperature-40℃~85℃
    Humidity5%-90% , non-condensing
    MechanicalDimension (L x W x H) mm270*180*44
    Weight1.2kg

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
