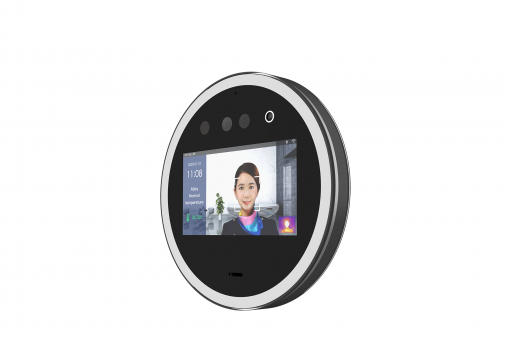

Face Recognition and Access Control Attendance Panel
  • •    5 inch IPS HD LCD screen
  • •    Dual Camera
  • •    Temperature measuring distance:0.5m~0.75m
  • •    Temperature range:35℃-42℃
  • •    Support face recognition, face comparison, mask detection, living body detection, mask recognition
  • •    Face recognition accuracy:0.995
  • •    Face database capacity:Max support 2,000 faces
  • •    Housing:Plastic (PC+ABS), Aluminum alloy, Glass
  • Specification
  • Accessories
  • Download
    Model NO.FK03AYW
    Main ProcessorSV806
    Operating SystemEmbedded LINUX
    RAMDDR3 256MB
    Dimensions5 inch IPS HD LCD screen
    Type2MP  camera
    Sensor1/5"  GC2145
    ResolutionNIR 800*600 15fps
    TypeDaily camera
    Sensor1/2.8" SONY Starvis Back-illuminated CMOS sensor IMX307
    ResolutionColor 1920*1080 30fps
    Body temperature detection
    Temperature measuring distance0.5m~0.75m
    Temperature range35℃-42℃
    Temperature measurement time<2s
    Temperature measurement accuracy± 0.3℃
    Measuring Environment8 ° C ~ 33 ° C
    Face recognition
    Detection TypeSupport face recognition, face comparison, mask detection, living body detection, mask recognition
    Face recognition accuracy0.995
    Face recognition distance0.5~2m
    Face database capacityMax support 2,000 faces
    Face PostureHorizontal less than 67°, vertical less than 40°
    OcclusionOrdinary glasses and short fringe have no effect on recognition.
    ExpressionUnder normal circumstances, slight expressions do not affect recognition.
    Response SpeedAbout 200ms
    Face exposureSupport
    Local StorageSupport storage of 5,000 records
    Recognition areaFull screen recognition
    Upload MethodTCP, HTTP,  MQTT
    Network Functions
    Network protocolIPv4, TCP/IP, HTTP, MQTT
    Interface protocolPrivate protocol
    Security ModeAuthorized  password
    Event linkageVoice broadcast, Abnormal event upload to the platform, Alarm output
    System UpgradeSupport remote upgrade
    Supplementary lightIR light, LED white light
    Identification Module/
    Audio InSupport Internal MIC (Developing)
    Audio OutBuilt in Speaker support voice broadcast after successful recognition
    Network Module/
    Wi-Fi2.4G/5.8G Dual frequency, IEEE 802.11b/g/n, IEEE802.11a/ac
    Temperature SensorHeimann32*32
    Alarm Indicator LightAbnormal red light, Normal green light
    Network InterfaceRJ45 10M/100M Network Adaptation
    Alarm Input/
    Alarm Output/
    Relay OutputSupport, NO, NC, COM
    RS485 interfaceSupport
    Wiegand interfaceSupport external Wiegand protocol equipment
    TF card slot/
    Reset keySupport
    Anti-disassembly switch/
    HousingPlastic (PC+ABS), Aluminum alloy, Glass
    Operating Temperature8 ° C ~ 33 ° C
    Working humidity10% -90% Non-condensing
    Storage Temperature -20 ° C ~ 70 ° C
    Storage humidity5% -95% Non-condensing
    Protection Level/
    Power SupplyDC12V, 1A
    Power dissipation (maximum)≤ 12 W
    Dimensions (mm)φ167*18.3mm
    Bracket TypeWall Mounting & Desktop
    Product weight (including packaging)1.2Kgs
    Packing size (mm)241×202×104mm
    Installation MethodDesktop installation/Doorpost installation/Wall installation

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
