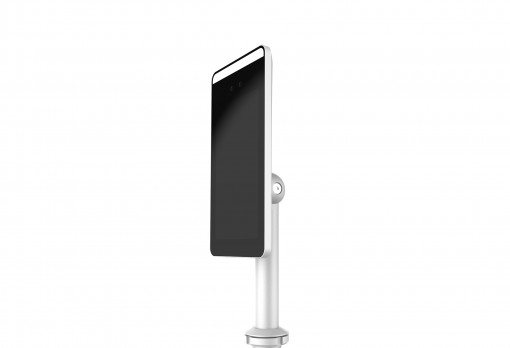

FK02GY
Face Recognition and Access Control Panel
  • •    7 inch IPS HD LCD screen
  • •    Dual Camera
  • •    Mask detection only
  • •    Face database Capacity:Max support 30,000 faces
  • •    Local Storage:Support storage of 25,000 records
  • •    Housing: Aluminum alloy, Ultra-white tempered glass panel, IP66
  • Specification
  • Accessories
  • Download
    SPECIFICATION
    Model NO.FK02GY
    System
    Main ProcessorSV810
    Operating SystemEmbedded LINUX
    RAMDDR3 512MB
    ROMEMMC 8GB
    Screen
    Dimensions7 inch IPS HD LCD screen
    Resolution600*1024
    Camera
    Type2MP  camera
    Sensor1/2.9"  GC2053
    ResolutionNIR 800*600 15fps
    Lens4.51mm
    Camera
    TypeDaily camera
    Sensor1/2.9" GC2093
    ResolutionColor 1920*1080 30fps
    Lens4.51mm
    Face recognition
    Detection TypeMask detection only
    Face Recognition Distance0.5-2m
    Face database CapacityMax support 30,000 faces
    Recognition AngleVertical  61°, Horizontal  36°
    OcclusionOrdinary glasses and short fringe have no effect on recognition.
    ExpressionUnder normal circumstances, slight expressions do not affect recognition.
    Response SpeedAbout 200ms
    Face ExposureSupport
    Local StorageSupport storage of 25,000 records
    Recognition AreaFull screen recognition
    Upload MethodTCP, HTTP,  MQTT
    Network Functions
    Network ProtocolIPv4, TCP/IP, HTTP, HTTPS, MQTT, RTSP, SMTP, NTP, Onvif
    Interface ProtocolPrivate protocol
    Security ModeAuthorized  password
    Event LinkageVoice broadcast, Abnormal event upload to the platform, Alarm Output
    System UpgradeSupport remote upgrade
    Accessories
    Supplementary LightIR light, LED white light
    Identification Module/
    Audio OutBuilt in Speaker support voice broadcast after successful recognition
    Network Module/
    Interface
    Network InterfaceRJ45 10M/100M Network Adaptation
    Alarm Input/
    Alarm OutputSupport 1 channel
    Relay OutputSupport
    RS485 InterfaceSupport(Reserved interface, no peripheral devices are  supported currently)
    Wiegand InterfaceSupport Wiegand 26, 34 protocols
    USB1*USB 2.0
    TTL Serial TTL DC 3.3V
    TF Card Slot/
    HDMI/
    Reset keySupport
    Anti-disassembly Switch/
    General
    HousingAluminum alloy, Ultra-white tempered glass panel,  IP66
    Operating Temperature -10℃~50℃
    Working Humidity10% -90% Non-condensing
    Storage Temperature -40 ° C ~ 70 ° C
    Storage Humidity5% -95% Non-condensing
    Protection Level/
    Power SupplyDC12V
    Power Dissipation (maximum)≤ 8 W
    Dimensions (mm)220 (W) * 112 (H) * 24 (T)
    Bracket size (mm)φ50x188.5(Installation hole diameter φ33)
    Installation MethodDesktop installation/Floor  installation/Gate machine installation/Column installation/Wall installation

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
