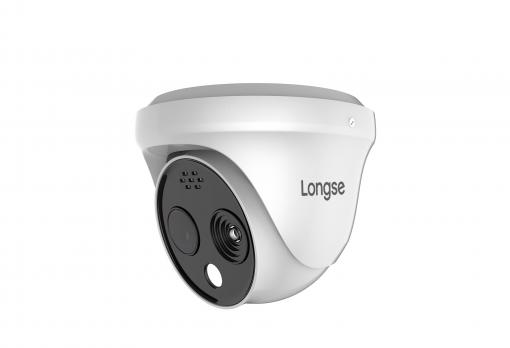

CMLD5HS1KBT
Body Temperature AI IP Camera
  • •    1/2.8"SONY Starvis Back-illuminated CMOS sensor
  • •    H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
  • •    Intelligent Analysis:Intrusion Detection, Line Cross Detection, Loiter Detection, People Gather Detection
  • •    Number of faces per frame: 32
  • •    Capture rate: >99.5%
  • •    False capture rate:
  • Specification
  • Accessories
  • Download
    SPECIFICATION
    Model NO.CMLD5HS1KBT
    Camera
    Image Sensor1/2.8" SONY Starvis Back-illuminated CMOS sensor
    Resolution4MP
    Effective Pixels2616 (H) x 1964 (V)
    Compression H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
    TV SystemPAL/NTSC
    Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
    Minimun Illumination0.01Lux
    S/N Ratio≥52dB
    Scanning SystemProgressive
    Video OutputNetwork
    Reset ButtonSupport
    Lens
    Focus Length6mm
    Focus ControlFixed
    Lens TypeFixed
    Pixels4MP
    Night Vision
    Infrared LEDNot support
    Infrared Distance/
    IR Status/
    IR Power On/
    Network
    EthernetRJ-45 (10/100Base-T)
    Wireless/
    ProtocolTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
    ONVIFSupport ONVIF 2.4(Profile S/T/G)
    P2PYES, Support QR Code
    POEOptional/Internal/External, Support IEEE 802.3af
    Video Delay0.3S (Within the Lan)
    Main Stream 12592*1944@20fp
    Main Stream 22560*1440@30fp
    Main Stream 31920*1080@30fps
    1280*720@30fps
    Sub Stream 11280*720@30fps
    Sub Stream 2720*480@30fps
    Sub Stream 3/
    Tri Stream352*288@30fps
    IE Brower IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari(lower than version 12)
    Smart PhoneiPhone, iPad, Android, Android Pad
    AI Function
    Intelligent AnalysisIntrusion Detetion, Line Cross Detetion, Loiter Detetion, People Gather Detecion
    RecognitionFace Detection and Recognition
    Face recognition distance: 0.5-1.5M
    Number of faces per frame: 32
    Capture rate: >99.5%
    Repeat capture rate: <15%
    False capture rate: <0.5%
    Number of supported faces: 30,000
    Minimum detection of face pixels: 25*25
    Maximum detection of face pixels: 300*300
    Temperature Detection
    Temperature measuring distance1.5m
    Temperature range35℃-42℃
    Temperature measurement accuracy± 0.3℃
    Measuring Environment10℃-35℃
    Alarm Indicator LightSuport light flash when detect abnormal temperature
    Sound AlarmBuilt in Speaker support voice broadcast when detect abnormal temperature
    Camera Features
    Day/NightColor
    Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering
    Corridor Pattern/
    Defog  ModeSupport
    ROISupport
    BLCSupport
    WDRHDR:120dB
    Motion DetectionSupport
    Privacy  Masking3 Rectangular Zone
    Recording ModeNVR/CMS/Web
    LanguageChinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands, Czech,Vietnamese
    Interface
    Audio1 Channel Input
    Alarm1 Channel Input/Output
    SD Card SlotSupport Max 512GB
    RS485Support
    General
    HousingMetal, IP66
    Anti-cut BracketNO
    IR Cut FilterYES
    Operation Temperature10℃ ~ +40℃ RH95% Max
    Storage Temperature-20℃ ~ +60℃ RH95% Max
    Power Source1000mA/12V
    Dimensionφ128 x110.9 (H) mm
    Weight800g

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
