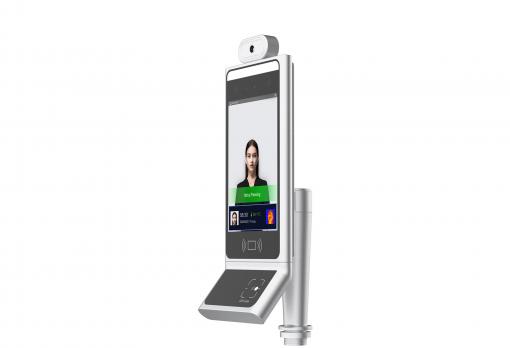

FK08GRW(EU CODE)
Face Recognition and Access Control Panel
  • •    8 inch IPS HD LCD screen
  • •    Dual Camera
  • •    Temperature Range:35.7℃-42℃
  • •    Face Dection, Face Comparison, Mask Detection, Living Body Detection, Face Comparison(With Mask)
  • •    Face database Capacity:Max support 30,000 faces
  • •    Local Storage:Support storage of 50,000 records
  • •    Support QR code scanner
  • •    Housing: Aluminum alloy, Ultra-white tempered glass panel
  • Specification
  • Accessories
  • Download
    SPECIFICATION
    Model NO.FK08GRW(EU CODE)
    System
    Main ProcessorRV1109, Dual ARM Cortex-A7, NPU 1.2T
    Operating SystemEmbedded LINUX
    RAMDDR3 1GB
    ROMEMMC 16GB
    Screen
    Dimensions8 inch IPS HD LCD screen
    Resolution800*1280
    Camera
    Type2MP  camera
    Sensor1/2.9"  GC2053
    ResolutionNIR 1280*720@25fps
    Lens4.5mm
    Camera
    TypeDaily camera
    Sensor1/2.9" GC2093
    ResolutionColor 1920*1080@25fps
    Lens4.5mm
    Body temperature detection
    Temperature Range35.7℃-42℃
    Temperature Measuring Distance0.7-1.2m
    Temperature Measurement Accuracy± 0.3℃
    Face recognition
    Detection FunctionFace Dection, Face Comparison, Mask Detection, Living Body Detection, Face Comparison(With Mask)
    Face Recognition Distance0.5-2m
    Face Database CapacityMax support 30,000 faces
    Face PostureVertical  61°, horizontal  36°
    OcclusionOrdinary glasses and short fringe have no effect on recognition.
    ExpressionUnder normal circumstances, slight expressions do not affect recognition.
    Response SpeedAbout 200ms
    Face ExposureSupport
    Local StorageSupport storage of 50,000 records
    Recognition AreaFull screen recognition
    Upload MethodTCP, HTTP,  MQTT
    Network Functions
    Network ProtocolIPv4, TCP/IP, HTTP, MQTT, RTSP, SMTP, NTP
    Interface ProtocolPrivate protocol
    Security ModeAuthorized  password
    Event LinkageVoice broadcast, Abnormal event upload to the platform, Alarm Output
    System UpgradeSupport remote upgrade
    Accessories
    Supplementary LightIR light, LED white light
    Identification Module/
    Audio OutBuilt in Speaker support voice broadcast after successful recognition
    Wi-Fi/
    Bluetooth/
    Card ReaderBulit in IC card reader, Support Mifare1 IC card
    4G/
    Alarm Indicator LightAbnormal red light, Normal green light
    Interface
    Network InterfaceRJ45 10M/100M Network Adaptation
    Alarm Input/
    Alarm OutputSupport 1 channel
    Relay OutputSupport
    RS485Support
    Wiegand InterfaceSupport Wiegand 26, 34 protocols
    USB1*USB 2.0
    TF Card Slot/
    HDMI/
    Reset KeySupport
    Anti-disassembly Switch/
    General
    HousingAluminum alloy, Ultra-white tempered glass panel
    Operating Temperature -10 ° C ~ 50 ° C
    Operating Temperature 8 ° C ~ 33 ° C(Enable temperature measurement)
    Working Humidity10% -90% Non-condensing
    Storage Temperature -20 ° C ~ 50 ° C
    Storage Humidity5% -95% Non-condensing
    Protection Level/
    Power SupplyDC12V, 2A
    Power Dissipation (maximum)18 W
    Dimensions (mm)Column Bracket Model:395.5(L)*132(W)*134(H)mm
    Bracket Size (mm)Column Bracket:202.5mm(Bracket fixing hole size D=35mm)
    Installation MethodGate machine Installation/Column Installation
    QR code scanner
    Image(pixels)640(H)x480(V)
    Light SourceWhite light, infrared light
    Field of ViewD:90° H:72° V:54°
    Scanning angleRotation angle 360°, elevation angle ± 55°, deflection angle ± 55°
    InterfaceUSB, TTL232
    Print Contrast≥25%
    Reading accuracy≥5mil
    1D QR CodeEAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey,GS1 Databar ,Code 11,Industrial 25,Standard 25,Plessey, Matrix 2 of 5
    2D QR CodeQR Code, Data Matrix, PDF417,Aztec
    Operating Temperature -20 °C ~ 50 °C
    Storage Temperature -40 ° C ~ 70 ° C
    Storage Humidity5% -95% Non-condensing
    Shock SpecificationDesigned to withstand a 1.2-meter drop to the concrete floor
    Ambient Light Immunity100,000Lux
    Decode RangeEAN13 13mil:30mm-140mm,Code39 5mi:30mm-50mm,  QR Code  20mi:325mm-120mm,Data Marix 10mi:300mm-70mm,  PDF417  6.67mil:30mm-80mm(Performance may be impacted by barcode quality and enviromental conditions)
    Operating VoltageDC 3.3 V
    Working current170mA
    Stand-by current20mA
    Physical dimension21.6(W)×14.1(D)×12(H)mm

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
