GMR01 - Longse

Longse designs HD cameras to provide high-definition images for surveillance centers. Its simple connection and operation is easier to accept for traditional security engineers.

Multiple product levels are available to fulfill various demands.
- HD Camera includes Value series and Pro series, which is highly cost-effective series that is to provide excellent performance at an affordable price.
- The Full Color Series is for some scenes with low light at night. This series camera offers full, vibrant color, in low-light settings.
- PTZ is an abbreviation for pan, tilt and zoom and reflects the movement options of the camera, which is commonly used in applications such as surveillance, video conferencing, live production, lecture capture and distance learning.
- Special camera is for some special scenes where need a camera for a wide range of surveillance.

SPECIFICATION

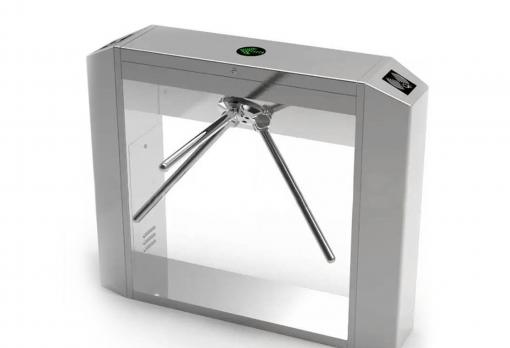

Model NO.	GMR01
Basic Parameters
Driver Signal	12V
Driver Voltage	24V
Movement	Single
Passing Speed	30 Persons/Min
Traffic	Steering of Brake lever,Unidirectional/Bidirectional (optional)
Material	304 Stainless
Channel Width	≤500mm
Card Reader	Support
Counting People	Support
Interface
RS485	RS485 electrical standard,communication distance: <1200 meters
Input Port	Switch Signal(NO NC COM)
General Specification
Power	220V±10% 50Hz 110V±10% 60Hz(optional)
Working Temperature	-30℃~60℃/10~95%
Device Size	1200280980mm
Package Size	12103101000mm
Package Weight	75KG
