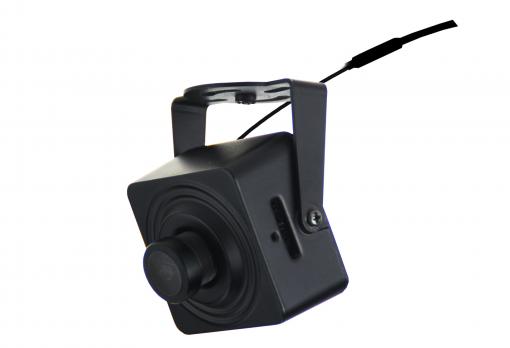

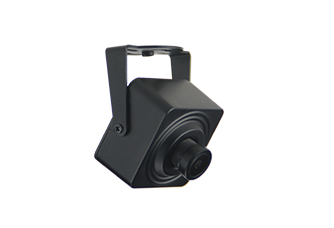

LMBM36SL200W
2MP Miniature IP Camera
  • •    High quality imaging with 2MP resolution;
  • •    1/2.8"SONY Starvis Back-illuminated CMOS Sensor;
  • •    Support H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG Compression ;
  • •    Support WIFI, WIFI Range:No obstacles 100m Max. ;
  • •    Support Audio IN/OUT by Line(3.5mm audio interface);
  • •    Support DWDR: 50dB;
  • •    Housing: Metal;
  • Specification
  • Accessories
  • Download
    SPECIFICATION
    Model NO.LMBM36SL200W
    Camera
    Image Sensor1/2.8" SONY Starvis Back-illuminated CMOS Sensor
    Resolution2MP 1080P
    Effective Pixels1945(H)*1097(V)
    Compression H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
    TV SystemPAL/NTSC
    Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
    Minimun Illumination0.005Lux
    S/N Ratio≥52dB
    Scanning SystemProgressive
    Video OutputNetwork
    Reset Button/
    LENS Type
    Focus LengthBoard Lens 2.8mm/F2.0
    Focus ControlFixed
    Lens TypeFixed
    Pixels3Mp
    Night Vision
    Infrared LED/
    Infrared Distance/
    IR Status/
    IR Power On/
    Network
    EthernetRJ-45 (10/100Base-T)
    ProtocolTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
    ONVIFSupport ONVIF 2.4(Profile S)
    P2PYES, Support QR Code
    POEOptional(External POE But Without Audio and Alarm Functions), Support IEEE 802.3af
    Video Delay0.3S (Within the Lan)
    Main Stream 11920*1080@30fps
    Main Stream 21280*720@25fps
    Main Stream 3/
    Sub Stream 1720*480@30fps
    Sub Stream 2/
    Sub Stream 3/
    Tri Stream352*288@30fps
    IE Brower IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari(lower than version 12)
    Smart PhoneiPhone, iPad, Android, Android Pad
    Wireless
    Antena2.5dbi
    Hotspot/
    Wi-FiWi-Fi(IEEE802.11b/g/n),2.4Ghz
    WIFI RangeNo obstacles 100m Max.
    Camera
    Day/NightColor
    Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control)
    Corridor PatternSupport
    ROI/
    Defog  ModeSupport
    BLCSupport
    WDRDWDR: 50dB
    Motion DetectionSupport
    Privacy  Masking3 Rectangular Zone
    Recording ModeNVR/VMS/Web/SD Card
    LanguageChinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese
    Interface
    AudioAudio IN/OUT by Line(3.5mm audio interface)
    Alarm1channel Input(3.3V~20V)
    SD Card Slotsupport  512G Micro SD
    RS485/
    General
    HousingMetal
    Anti-cut BracketYES
    IR Cut FilterNO
    Operation Temperature-20℃ ~ +60℃ RH95% Max
    Storage Temperature-20℃ ~ +60℃ RH95% Max
    Power SourceDC12V±10%, 350mA
    Dimension36(W) x 36(H) x33(D)mm
    Weight300g

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
