LVDBHFG200

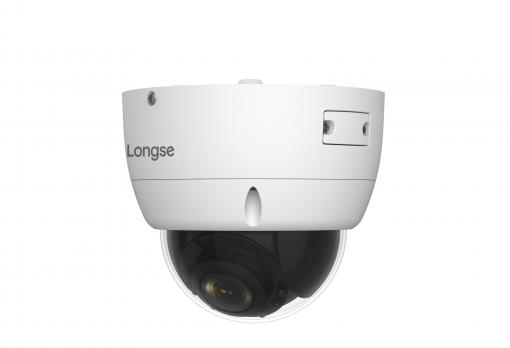

2MP Outdoor Infrared Fixed Dome IP Camera
  • •    High quality imaging with 2MP resolution;
  • •    1/2.9"Progressive Scan CMOS Sensor;
  • •    Support H.264/H.264+/H.265/H.265+/JPEG/AVI Compression ;
  • •    minimum Illumination:Color: 0.008 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
  • •    Infrared Distance:40m;
  • •    Intelligent Analysis:Intrusion Detection;
  • •    Support DWDR;
  • •    Housing: Metal, IP67
  • Specification
  • Accessories
  • Download
    SPECIFICATION
    Model NO.LVDBHFG200
    Camera
    Image Sensor1/2.9" Progressive Scan CMOS Sensor
    Resolution2MP 1080P
    Effective Pixels1920(H)*1080(V)
    Compression H.264/H.264+/H.265/H.265+/JPEG/AVI
    Audio CompressionG711A/U,AAC
    TV SystemPAL/NTSC
    Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec
    Minimun IlluminationColor: 0.008 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
    S/N Ratio60dB
    Scanning SystemProgressive
    Video OutputNetwork
    Reset ButtonOptional
    Lens
    Focus Length3.6mm
    Focus ControlFixed
    Lens TypeFixed
    Pixels2MP
    Night Vision
    Infrared LED42µ x 4PCS
    Infrared Distance40M
    IR StatusAuto Control
    IR Power OnSmart, Manual & Timed mode
    Network
    EthernetRJ-45 (10/100Base-T)
    WirelessN/A
    ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,  RTCP ,PPPoE, NTP,  SMTP, UDP
    ONVIFSupport ONVIF 2.4(Profile S/T/G)
    P2PYES
    POEOptional, Support IEEE 802.3af
    Video Delay0.3S (Within the Lan)
    Main Stream 12304*1296@30fps
    Main Stream 21920*1080@30fps
    Main Stream 31280*720@30fps
    Sub Stream 11280*720@30fps
    Sub Stream 2720*480@30fps
    Sub Stream 3N/A
    Tri StreamN/A
    IE Brower IE8-11, Google Chrome, Firefox , Mac Safari
    Smart PhoneiPhone, Android
    AI Function
    Intelligent AnalysisIntrusion Detetion
    Camera Features
    Day/NightColor/ B&W (IR-CUT )
    Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering, HLC, Distortion
    Full ColorN/A
    Corridor PatternN/A
    Defog  ModeSupport
    ROISupport
    BLCSupport
    WDRDWDR
    Motion DetectionSupport
    Privacy  Masking3 Rectangular Zone
    Recording ModeNVR/CMS/Web
    LanguageChinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese
    Interface
    AudioOptional Audio IN/OUT
    AlarmN/A
    SD Card SlotOptional Internal, Support Max 512GB
    RS485N/A
    General
    HousingMetal ,IP67
    Anti-cut BracketNO
    IR Cut FilterYES
    Operation Temperature-20℃ ~ +60℃ RH95% Max
    Storage Temperature-20℃ ~ +60℃ RH95% Max
    Power SourceDC12V±10%, 950mA
    Dimension¢140 x 123(H)mm
    Weight1200g

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
