LMDHRL400

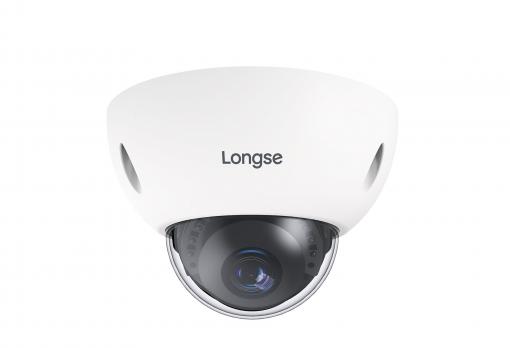

4MP Outdoor Infrared Fixed Dome Network camera
  • •    High quality imaging with 4MP resolution;
  • •    1/2.8"SONY Starvis Back-illuminated CMOS Sensor;
  • •    Support H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG Compression ;
  • •    Minimum Illumination:0.003Lux , Infrared Distance:40m;
  • •    Support WDR: 120dB;
  • •    Housing: Metal, IP67
  • Specification
  • Accessories
  • Download
    Camera
    Image Sensor1/2.8" SONY Starvis Back-illuminated CMOS sensor
    Resolution4MP
    Effective Pixels2616 (H)*1964 (V)
    Compression H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
    Audio CompressionG711A/U,AAC
    TV SystemPAL/NTSC
    Electronic Shutter TimeAuto: 1/3-1/100000Sec
    Minimun IlluminationColor: 0.003 lux@F1.6,AGC ON; B/W :0 lux with IR
    S/N Ratio60dB
    Scanning SystemProgressive
    Video OutputNetwork
    Reset ButtonOptional
    Lens
    Focal Length & FOV2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
    3.6 mm, horizontal FOV 88°, vertical FOV 44°, diagonal FOV 105°
    Lens TypeFixed focal lens, 2.8 and 3.6 mm optional
    Focus ControlFixed
    ApertureF1.6
    Pixels4MP
    Night Vision
    Infrared LED14µ x 12PCS
    Infrared Distance20M
    IR StatusAuto Control
    IR Power OnSmart, Manual & Timed mode
    Network
    EthernetRJ-45 (10/100Base-T)
    WirelessN/A
    ProtocolTCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,  RTCP ,PPPoE, NTP,  SMTP, UDP, SNMP,Qos,802.1x
    ONVIFSupport ONVIF 19.12(Profile S/T/G)
    P2PYES
    POEInternal, Support IEEE 802.3af
    Video Delay0.3S (Within the Lan)
    Main Stream 12592*1944@30fp
    Main Stream 22560*1440@30fp
    Main Stream 31920*1080@30fps
    1280*720@30fps
    Sub Stream 11280*720@30fps
    Sub Stream 2720*480@30fps
    Sub Stream 3352*288@30fps
    Tri Stream1280*720@30fps
    720*480@30fps
    352*288@30fps
    IE Brower IE8-11, Google Chrome, Firefox , Mac Safari
    Smart PhoneiPhone, Android
    AI Function
    Intelligent AnalysisFace Detection,Intrusion Detetion(based on human and Vehicle Detection), Line Cross Detetion(based on human and Vehicle Detection), Loiter Detetion, People Gather Detecion(based on human detection),Motion detection based on human detection
    Camera Features
    Day/NightColor/ B&W (IR-CUT )
    Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, Anti Flicker, Video Tampering, HLC, Distortion
    Full ColorN/A
    Corridor PatternSupport
    Defog  ModeSupport
    ROISupport
    BLCSupport
    WDR120dB
    Motion DetectionSupport(support enable the detection based on human movement only)
    Privacy  Masking3 Rectangular Zone
    Recording ModeNVR/CMS/Web
    LanguageChinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese
    Interface
    AudioOptional Audio IN/OUT
    AlarmOptional 1 Channel Input/Ouput
    SD Card SlotOptional Internal, Support Max 1TB,Built in 4G Storage
    RS485N/A
    General
    HousingMetal , IP67
    Anti-cut BracketNO
    IR Cut FilterYES
    Operation Temperature-20℃ ~ +60℃ RH95% Max
    Storage Temperature-20℃ ~ +60℃ RH95% Max
    Power SourceDC12V±10%, 650mA
    Dimension¢110 x 76(H) mm
    Weight450g

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
