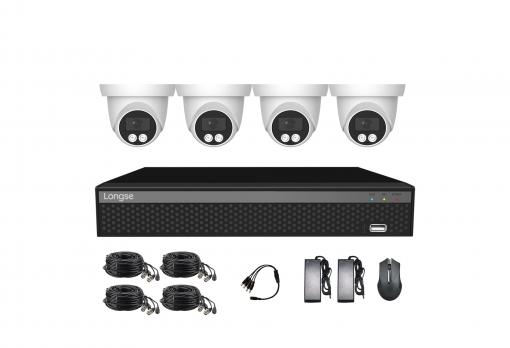

XVRT3004D4MD200
4CH IR XVR Kits
  • •    1x XVRT3004D;
  • •    4 x CMSDAD200F;
  • •    4x 18m BNC+DC Cable, 1x (1 to 4CH power cable splitter) ;
  • •    1xUSB 2.0 Mouse;
  • •    2 x DC12V2A Adaptor
  • Specification
  • Accessories
  • Download
    SPECIFICATION
    Model NO.XVRT3004D4MD200
    Package
    XVR1x XVRT3004D
    Camera4 x CMSDAD200F
    Cable4x 18m BNC+DC Cable, 1x (1 to 4CH power cable splitter)
    Mouse1xUSB 2.0 Mouse
    Hard Disk No
    Adaptor2 x DC12V2A Adaptor
    Weight7.9kg/SET
    Camera ModelCMSDAD200F
    Image Sensor1/2.9" CMOS Sensor
    Image Resolution2M:1920*1080
    TV SystemPAL/NTSC
    Electronic ShutterAUTO
    Minimun IlluminationColor : 0.01 lux@F2.0, AGC ON; B/W : 0 lux with IR
    Scanning SystemProgressive  Scan
    Lens
    Focus Length3.6mm
    Focus ControlFixed
    Lens TypeFixed
    Night Vision
    IR Cut FilterYES
    Infrared LED20µ x 2PCS
    Infrared Distance25M
    IR StatusAGC Auto Control
    Camera Features
    StarlightN/A
    Day/Night  YES
    OSD Menu YES
    WDR DWDR
    UTC YES
    Noise Reduction 3D NR
    White Balance AUTO / MANUAL
    Gain Control AUTO
    General
    HousingMetal&Plastic Material Housing
    BracketNO
    Operation Temperature-10℃ ~ +60℃ RH95% Max
    Storage Temperature-20℃ ~ +60℃ RH95% Max
    Power SourceDC12V±10%, 550mA
    Dimension¢108x85(H)mm
    Weight400g
    ModelXVRT3004D
    System
    Main ProcessorMC6630
    Operating SystemEmbedded LINUX
    Video
    InputNormal Mode: Analog: 4*(TVI/AHD: 5M@12fps;  AHD/TVI/CVI: 4M@15fps;  AHD/TVI: 3M@18fps;  AHD/TVI/CVI: 1080P/720P;  Analog: 960H)
    Analog+Network: 2*Analog(5MP@12fps;4MP@15fps;@3MP@18fps;2MP)+4*network(MAX 2MP)
    Network: 9*5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ≤48M)
    Input4CH BNC
    Signal TypeAnalog/AHD/CVI/TVI 2.0/TVI 3.0/Network
    Output1HD,1 VGA
    Audio
    Input1 Channel, RCA
    Two-way AudioNO
    Output1 Channel, RCA
    Alarm
    Sensor InputNO
    OutputNO
    Motion Detection4 Channel(max 9 Channel in pure network mode)
    Trigger EventsRecording,  Email, Screen tips, Buzzer, Push notifications(motion detection)
    Email AlarmSend Image to The Designated E-mail
    AI Function
    Human DetectionYES
    PTZ
    InterfaceRS485
    ProtocolPelco-D, Pelco-P
    Baud Rate110~921600
    Address0~255
    Display
    VGAResolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
    HD OutputResolution:1920 × 1080P/60Hz,  1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
    Display Split9 Channel/4 Channel / 1Channel
    Privacy Masking3 Rectangular Zones (Each camera)
    OSDCamera title, Time, Video loss, Alarm, Motion detection, Recording
    Recording
    Video CompressionH.265/H.264
    Audio CompressionG.711u/G.711a
    Resolution5MP_Lite(1296×1944),4MP_Lite(1280×1440),3MP_Lite(1024×1536),1080N(960×1080),720P(1280×720),960H(P:960×576/N:960×480)
    Video QualityLowest/Low/Ordinary/Good/Better/Best
    Record RateAnalog:  PAL:5MP_Lite(1296×1944 4*8fps),4MP_Lite(1280×1440 4*15fps),3MP_Lite(1024×1536 4*18fps),1080N(960x1080 4*18fps),720P(1280×720 4*20fps), 960H(960×480 4*25fps)
    NTSC: 5MP_Lite(1296×1944 4*8fps),4MP_Lite(1280×1440 4*15fps),3MP_Lite(1024×1536 4*18fps),1080N(960x1080 4*18fps),720P(1280×720 4*20fps), 960H(960×480 4*25fps)
    Pure IP(H.265):
    PAL: 5MP@8×25fps,4MP@9x25fps,3MP@9×25fps,1080P@9×25fps,960P@9×25fps,720P@9×25fps,D1@9×25fps
    NTSC: 5MP@8×30fps,4MP@9×30fps,3MP@9×30fps,1080P@9×30fps, 960P@9×30fps, 720P@9×30fps, D1@9×30fps
    Record ModeManual\Timer\Motion Detection
    Playback & Backup
    Decode Capability2CH 1080P@30fps
    Sync PlaybackPure Analog: 4CH 960H@25fps, 2CH 720P@20fps, 2CH 1080N@18fps, 1CH 5M_LITE@8fps, 1CH 4M_LITE@15fps, 1CH 3M_LITE@18fps
    Mixture mode:  4CH 720P@25fps, 2CH 1080P@25fps,  1CH 5M_LITE@8fps, 1CH 4M_LITE@15fps, 1CH 3M_LITE@18fps
    Pure Network: 4CH*720P@25fps, 2CH 1080P@25fps, 1CH 5MP@25fps
    Remote Playback1Channel
    Search ModeALL, Channel, Manual, Time, Date, Motion Detection
    Playback FunctionsPlay, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
    Smart Phone Playback4 Channel
    Backup ModeUSB Device(with fomat FAT 32 )/Network/FTP
    Network
    Interface1 RJ45 10M/100M Adaptive Ethernet Interface
    Network FunctionsTCP/IP, HTTP, UPnP, DNS, NTP, SMTP,DHCP, FTP, DDNS, RTP, RTSP, RTCP
    DDNSDyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN
    Web BrowserEdge,IE8-11, Google Chrome , Firefox ,Safari
    CMS SoftwareSupport  Windows 7/ Windows 8/Windows 10
    Extra StreamCIF/D1(1~25fps)
    Smart PhoneiPhone, ipad,  Android ,Android pad
    Hard Disk Driver
    Interface Type1 SATA Interface
    Capacity1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)
    General
    LanguageSimplified Chinese,Traditional Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese,
    UTC ControlYES
    USB Interface2 USB 2.0 Interfaces
    Power consumptionDC 12V/2A  ≤4W (Without Hard Disk)
    Working Environment-10~55℃/10~90%
    Dimension (W×D×H)260*215*43(mm)
    Weight2kg (Without HDD)

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
