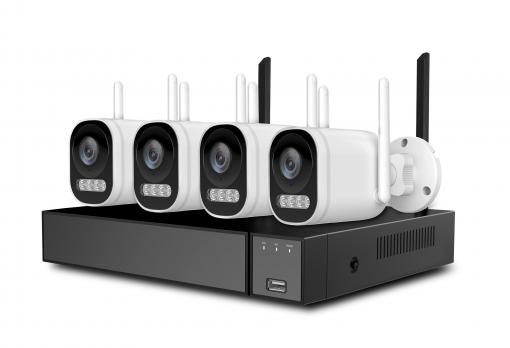

LW2MC84B2
2MP 4CH WIFI KITS
- • 1x LW08C;
- • 4 x LW2B2;
- • WIFI Range:No Obstacles 400m Max;
- • 1 x 1m Net Cable, 1xUSB 2.0 Mouse;
- • 1xDC 12V2A for NVR, 4x12V1A for IPC;
| Package | |
| NVR | 1x LW08C |
| Camera | 4 x LW2B2 |
| WIFI Range | No Obstacles 400m Max |
| Cable | 1 x 1m Net Cable |
| Mouse | 1xUSB 2.0 Mouse |
| Adaptor | 1xDC 12V2A for NVR, 4x12V1A for IPC |
| Weight | 3145g |
| Camera Model | LW2B2 |
| Camera | |
| Image Sensor | 1/2.9" CMOS sensor |
| Resolution | 2MP |
| Compression | H.265 |
| TV System | PAL(default） |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec |
| S/N Ratio | ≥52dB |
| Scanning System | Progressive |
| Video Output | Wireless network |
| Reset Button | Yes |
| LENS Type | |
| Focus Length | 2.8mm F2.0 |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 2M Pixels |
| Night Vision | |
| Infrared LED | LED: 14µ x 12PCS+30μ x2PCS White light |
| Infrared Distance | 30M |
| Fill light mode | Infrared / Full color / Smart |
| Network | |
| Ethernet | N/A |
| Protocol | TCP/IP,ICMP,RTP,RTSP,RTCP |
| ONVIF | N/A |
| P2P | N/A |
| POE | N/A |
| Main Stream 1 | 1920*1080@15fps |
| Sub Stream 1 | 720*480@15fps |
| IE Brower | N/A |
| Smart Phone | N/A |
| Wireless | |
| Antena | 3dbi |
| Hotspot | NO |
| Wi-Fi | Wi-Fi(IEEE802.11b/g/n) |
| WIFI Range | No obstacles 400m Max. |
| Camera Features | |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror |
| Screen rotation | Rotate 90°/180°/270° |
| ROI | N/A |
| Defog Mode | N/A |
| BLC | N/A |
| HDR | N/A |
| Intelligent detection | N/A |
| Motion Detection | Support |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR |
| Language | N/A |
| Interface | |
| Audio | Built-in microphone |
| Alarm | N/A |
| SD Card Slot | N/A |
| RS485 | N/A |
| General | |
| Housing | Plastic IP65 |
| Anti-cut Bracket | YES |
| IR Cut Filter | YES |
| Operation Temperature | -10℃ ~ +50℃ RH95% Max |
| Storage Temperature | -20℃ ~ +55℃ RH95% Max |
| Power Source | DC12V±10%, 1A |
| Dimension | 151.7×79.83×79(mm) |
| Weight | 338.2g |
| Model | LW08C |
| System | |
| Main Processor | ARM Cortex A7 Processor |
| Operating System | Embedded LINUX |
| Video | |
| Input | 8CH (2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc) |
| Output | 1 VGA, 1 HD |
| Audio | |
| Input | N/A |
| Output | 1*3.5mm audio interface |
| Audio Bit Rate | 64kbps |
| Audio Compression standard | G711a |
| Alarm | |
| Sensor Input | NO |
| Output | NO |
| Motion Detection | 8 Channel, MD Zones: 396 (22 × 18) |
| Intelligent detection | Personnel detection, Vehicle detection |
| Trigger Events | Recording, Email, Sound and Light, Buzzer and Push notification |
| Display | |
| Monitor | N/A |
| Resolution | N/A |
| HD | Resolution: 4K(3840x2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Display Split | 1/4/8/9 |
| Digital Zoom | YES |
| OSD | Camera name, Time |
| Recording | |
| Video Compression | H.265 |
| Resolution | 5MP(2592×1944),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480) |
| Record Rate | 5MP@4×15fps,4MP@4x15fps,3MP@4×15fps,1080P@4×15fps, 960P@4×15fps,720P@4×15fps, D1@4×15fps |
| Record Mode | Manual\Timing\Intelligent Events |
| Playback & Backup | |
| Local Sync Playback | 4CH 5MP@15fps, 4CH 4MP@15fps, 4CH 3M@15fps, 4CH 1080P@15fps, 4CH 960P@15fps, 4CH 720P@15fps,4CH D1@15fps |
| Decode Capability | 4CH 1080P@30fps |
| Remote Sync Playback | YES |
| Search Mode | ALL, Channel, Manual, Timing, Motion Detection,Personnel,Vehicle |
| Playback Functions | Play, Stop, Backward ,Forward, Fast play, Slow Play, Frame forward,Audio,Editing |
| Backup Mode | Network/USB2.0 |
| Network | |
| Interface | 1 RJ45 10M/100M Adaptive Ethernet Interface |
| Network Functions | TCP/CP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, DDNS, RTP, RTSP, RTCP, p2p |
| Onvif Version | N/A |
| Web Browser | Edge, Firefox, Chrome, Safari |
| CMS Software | N/A |
| Cloud Support(P2P) | Yes |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| POE | N/A |
| WIFI | Support, WIFI Range: No Obstacles 400m Max. |
| Storage | |
| Interface Type | 1 SATA Hard Disk Interface (2.5"/3.5" SATA) |
| Capacity | Up to 8TB capacity |
| eSATA | N/A |
| General | |
| Language | Simplified Chinese,English,Russian,Deutsch, French,Spanish, Italian |
| USB Interface | 2 USB 2.0 Interfaces |
| RS485 | N/A |
| Power Supply | DC12V/2A |
| Working Environment | -10~55℃/10~90% |
| Dimension(W×D×H) | 260x230x46mm |
| Weight | 1537.5 g |
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
