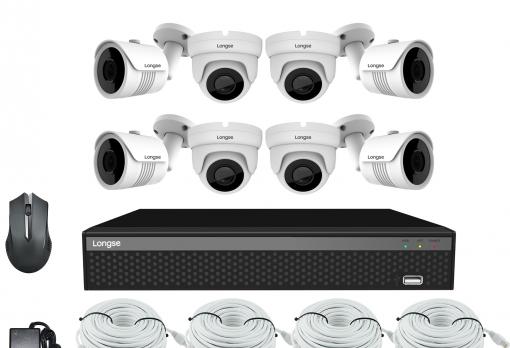

NVR2108DP3FE200
8CH POE NVR Kits
  • •    1x NVR2108DP;
  • •    4 x LIRDBAFE200, 4 x LBH30FE200;
  • •    8x 20m CAT5e Cable ;
  • •    1xUSB 2.0 Mouse;
  • •    Adaptor: DC52V/2.5A;
  • Specification
  • Accessories
  • Download
    Package
    NVR1x NVR2108DP
    Camera4 x LIRDBAFE200
    4 x LBH30FE200
    Cable8x 20m CAT5e Cable
    Mouse1xUSB 2.0 Mouse
    Hard Disk No
    AdaptorDC52V/2.5A
    Weight12.8kg/SET
    Camera ModelLIRDBAFE200LBH30FE200
    Image Sensor1/2.9"  Full HD CMOS Sensor
    Resolution2MP 1080P
    Effective Pixels1920(H)*1080(V)
    Compression H.264/H.264+/H.265/H.265+/JPEG/AVI
    TV SystemPAL/NTSC
    Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec
    Minimun Illumination0.01Lux
    S/N Ratio≥60dB
    Scanning SystemProgressive
    Video OutputNetwork
    Reset ButtonOptional
    Lens
    Focus Length3.6mm
    Focus ControlFixed
    Lens TypeFixed
    Pixels5MP
    Night Vision
    Infrared LED14µ x 18PCS14µ x 20PCS
    Infrared Distance20M25M
    IR StatusAuto Control
    IR Power OnAuto Control
    Network
    EthernetRJ-45 (10/100Base-T)
    WirelessN/A
    ProtocolTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,UDP
    ONVIFSupport ONVIF 2.4(Profile S/T/G)
    P2PYES
    POEYes, Support IEEE 802.3af
    Video Delay0.3S (Within the Lan)
    Main Stream 12304*1296@20fps
    Main Stream 21920*1080@30fps
    Main Stream 31280*720@30fps
    Sub Stream 1720*480@30fps
    Sub Stream 2352*288@30fps
    Sub Stream 3N/A
    Tri StreamN/A
    IE Brower IE8-11, Google Chrome, Firefox , Mac Safari
    Smart PhoneiPhone, iPad, Android, Android Pad
    Camera Features
    Day/NightColor/ B&W (IR-CUT )
    Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror,  White Balance, FLK(Flicker Control)
    StarlightN/A
    Corridor PatternSupport
    Defog  ModeSupport
    ROIN/A
    BLCYES
    HDRN/A
    WDRNO
    Motion DetectionSupport
    Privacy  Masking3 Rectangular Zone
    Recording ModeNVR
    LanguageChinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese
    Interface
    AudioOptional
    AlarmN/A
    SD Card SlotN/A
    RS485N/A
    General
    HousingMetal , IP67
    Anti-cut BracketNOYES
    IR Cut FilterYES
    Operation Temperature-20℃ ~ +60℃ RH95% Max
    Storage Temperature-20℃ ~ +60℃ RH95% Max
    Power SourceDC12V±10%, 750mADC12V±10%, 950mA
    Dimensionφ93 x 74(H) mm157(W) x 70(H) x 66(D)mm
    Weight400g650g
    ModelNVR2108DP
    System
    Main ProcessorARM Cortex A7 Processor
    Operating SystemEmbedded LINUX
    Video
    Input16CH (3840×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
    Output1 VGA, 1 HD
    Audio
    Input1 Port RCA
    Output1 Port RCA(Linear, 1kΩ)
    Audio Bit Rate64kbps
    Audio Compression standardG711u, G711a, ADPCM_DVI4
    Alarm
    Sensor Input4
    Output1
    Motion Detection16 Channel, MD Zones: 396 (22 × 18)
    Trigger EventsRecording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output
    Display
    HD OutputResolution:4K (3840 × 2160)/30Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
    VGAResolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
    Display Split16CHxD1/9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k
    Digital ZoomYES
    OSDCamera Title, Time, Recording, Motion Detection, Event Alarm
    Recording
    Video CompressionH265/H264/H265+/H264+
    Resolution4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
    Record RatePAL :4k@10×25fp,5MP@14×25fp,4MP@16x25fp,3MP@16×25fp,1080P@16×25fp, 960P@16×25fp,720P@16×25fp, D1@16×25fp
    NTSC: 4k@10×30fp,5MP@14×30fp,4MP@16×30fp,3MP@16×30fp,1080P@16×30fp, 960P@16×30fp, 720P@16×30fp, D1@16×30fp
    Record ModeManual\Timer\Motion Detection\ Alarm\Motion and Alarm\Smart Alarm
    Playback & Backup
    Local Sync Playback1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
    Decode Capability4CH 1080P(1920x1080)@30fps
    Remote Sync PlaybackYES
    Search ModeALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm,Tag search
    Playback FunctionsPlay, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom,tag,clip
    Backup ModeUSB Device/Network
    Network
    Interface9 x RJ45 (10M/100M Adaptive Ethernet Interface)
    Incoming Bandwidth80MB
    Network FunctionsTCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
    Onvif Support onvif S,onvif T
    Web BrowserIE8-11, Google Chrome, Firefox , Mac Safari
    CMS SoftwareSupport  Windows 7/ Windows 8/Windows 10/MAC OS
    Cloud Support(P2P)Yes
    Smart PhoneiPhone, iPad, Android, Android Pad
    POE8 x Independent 100Mbps POE Network Interfaces(Output Power AF mode 15W per Interface), 45/78 line order, Total Power Output≧100W,  Support Plug and Play, Support network cable extended mode Max. 200M
    WIFIN/A
    Storage
    Interface Type1 SATA Hard Disk Interface (2.5"/3.5" SATA)
    CapacityUp to 8TB capacity
    eSATAN/A
    General
    LanguageTraditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
    German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek,  Vietnamese,Janpanese
    USB Interface2 USB 2.0 Interfaces
    RS485N/A
    Power consumptionDC 52V/2500mA  ≤20W (Without Hard Disk and POE)
    Working Environment-10~55℃/10~90%
    Dimension(W×D×H)260*215*43(mm)
    Weight2.0KG (without HDD)

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
