PT6B018XGC200

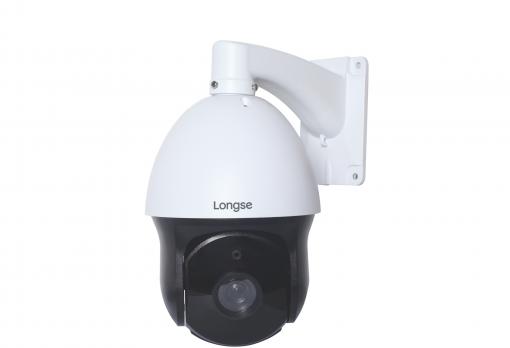

2MP 18X Outdoor IR IP PTZ Camera
  • •    1/2.9"Progressive Scan CMOS Sensor;
  • •    Support H.265/H.264;
  • •    18X Optical Zoom
  • •    Horizontal Rotation Range :0°~360°
  • •    Tilt Rotation Range :0°~93°
  • •    IR Range:150m
  • •    Intelligent Analysis:Intrusion Detection,motion detection based on human detection
  • •    Weatherproof:IP66
  • Specification
  • Accessories
  • Download
    Camera
    Image Sensor1/2.9" Progressive Scan CMOS Sensor
    Horizontal Resolution2MP
    CompressionH.265/H.264
    Minimun IlluminationColor: 0.008 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
    S/N Ratio60db
    PTZ
    Horizontal Rotation Speed 30°/S
    Horizontal Rotation Range 0°~360°
    Tilt Rotation Speed 15°/s
    Tilt Rotation Range 0°~93°
    Preset Points 255
    Guard Tours8 groups
    Guard PointsMax.20 points
    Lens
    Focus Length5.35-96.3mm F1.8-F3.9
    Focus Control18X Optical Zoom
    Night Vision
    Infrared LED¢35x7PCS IR LEDS + 2PCS Laser LED
    IR Range150m
    Day-night modeAUTO
    Network
    Network protocolTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
    ONVIFSupport (PROFILE S,PROFILE G,PROFILE T)
    Network interfaceBuilt-in RJ45 network interface,support 10M/100M IP DATA
    Main Stream11920*1080@30fps
    Main Stream21280*720@30fps
    Main Stream3N/A
    Main Stream4N/A
    Main Stream5N/A
    Main Stream6N/A
    Sub Stream1720*480@30fps
    Sub Stream2352*288@30fps
    Sub Stream3N/A
    Sub Stream4N/A
    AI Function
    Intelligent AnalysisIntrusion Detetion,motion detection based on human detection
    Camera Features
    Day/NightColor/ B&W (IR-CUT )
    Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control)
    Full ColorN/A
    Corridor PatternN/A
    Defog  ModeSupport
    ROIN/A
    BLCSupport
    WDRDWDR
    Motion DetectionSupport(support enable the detection based on human movement only)
    Privacy  Masking3 Rectangular Zone
    Recording ModeNVR/CMS/Web
    LanguageChinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese
    Interface
    AudioOptional
    Audio EncodeG711A,C711U
    AlarmN/A
    SD Card SlotOptional
    POEN/A
    General
    WeatherproofIP66
    Operating TemperatureLight on: -20~45℃
    Light off:-20~55℃
    Operating Humidity ≤90% Non Condensing
    PowerDC12V/1.4A
    Lightning ProtectionTransient voltage 6000V
    Dimensiondevice:190*190*298(mm)
    package:255*215*410(mm)
    Weightdevice:1.82Kgs
    package:3.00Kgs

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
