PT3DK4XGC200

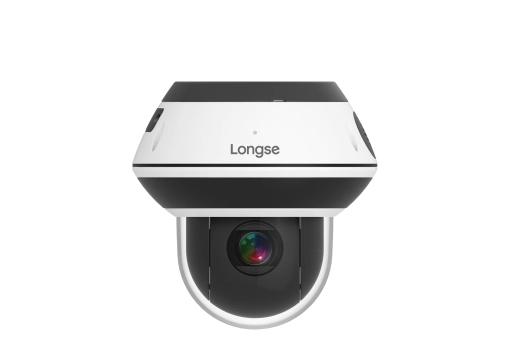

2MP 4X Optical Zoom Outdoor IP Dome Camera
  • •    High quality imaging with 2MP resolution;
  • •    1/2.9"Progressive Scan CMOS Sensor;
  • •    Support H.264/H.265 Compression ;
  • •    Horizontal Rotation Speed:22°/S;
  • •    Horizontal Rotation Range:0°~340°;
  • •    Tilt Rotation Speed: 15°/S;
  • •    Tilt Rotation Range: '0°~90°;
  • •    4X Optical Zoom Lens;
  • •    IP66;
  • Specification
  • Accessories
  • Download
    Camera
    Image Sensor1/2.9" Progressive Scan CMOS Sensor
    Horizontal Resolution2MP
    CompressionH.264/H.265
    Minimun IlluminationColor: 0.008 Lux @ (F1.8, AGC ON),B/W: 0 Lux with IR
    S/N Ratio60db
    PTZ
    Horizontal Rotation Speed 22°/S
    Horizontal Rotation Range 0°~340°
    Tilt Rotation Speed 15°/S
    Tilt Rotation Range 0°~90°
    Preset Points 255
    Guard Tours8 groups
    Guard PointsMax.20 points
    Lens
    Focus Length3.55-10.05mm F1.66-F3.03
    Focus Control4X Optical Zoom
    Night Vision
    Infrared LED¢28x8PCS
    IR Range15m
    Day-night modeAUTO
    Network
    Network protocolTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
    ONVIFSupport (PROFILE S,PROFILE G,PROFILE T)
    Network interfaceBuilt-in RJ45 network interface,support 10M/100M IP DATA
    Main Stream11920*1080@30fps
    Main Stream21280*720@30fps
    Main Stream3N/A
    Main Stream4N/A
    Main Stream5N/A
    Main Stream6N/A
    Sub Stream1720*480@30fps
    Sub Stream2352*288@30fps
    Sub Stream3N/A
    Sub Stream4N/A
    AI Function
    Intelligent AnalysisIntrusion Detetion,motion detection based on human detection
    Camera Features
    Day/NightColor/ B&W (IR-CUT )
    Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control)
    Full ColorN/A
    Corridor PatternN/A
    Defog  ModeSupport
    ROIN/A
    BLCSupport
    WDRDWDR
    Motion DetectionSupport(support enable the detection based on human movement only)
    Privacy  Masking3 Rectangular Zone
    Recording ModeNVR/CMS/Web
    LanguageChinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese
    Interface
    AudioBuilt-in Mic & Speaker
    Audio EncodeG711A,C711U
    AlarmN/A
    SD Card SlotN/A
    POEOptional
    General
    WeatherproofIP66
    Operating TemperatureLight on: -30~45℃
    Light off:-30~50℃
    Operating Humidity ≤90% Non Condensing
    PowerDC12V/1A(Device power consumption)
    Lightning ProtectionTransient voltage 3000V
    Dimensiondevice:129*129*124(mm)
    package:140*155*150(mm)  (Hanging)
    140*155*160(mm)  (Wall Mount)
    Weightdevice:0.64Kgs
    package:0.885Kgs(Hanging)
    0.935Kgs(Wall Mount)

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
