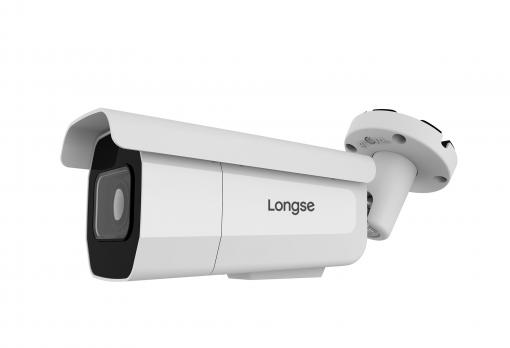

LBE905XKL500
5MP Outdoor Infrared Varifocal Bullet Network camera
  • •    High quality imaging with 5MP resolution;
  • •    2.7-13.5mm Motor Zoom
  • •    1/2.8"SONY Starvis Back-illuminated CMOS sensor;
  • •    Support H.264/H.264+/H.265/H.265+/JPEG/AVI Compression ;
  • •    Minimum Illumination:0.006 Lux,Infrared Distance:40m;
  • •    Support WDR;
  • •    Housing:Cover:Plastic Main Body:Metal , IP67
  • Specification
  • Accessories
  • Download
    Camera
    Image Sensor1/2.8" SONY Starvis Back-illuminated CMOS sensor
    Resolution5MP
    Effective Pixels2616(H)*1964(V)
    Compression H.264/H.264+/H.265/H.265+/JPEG/AVI
    Audio CompressionG711A/U,AAC
    TV SystemPAL/NTSC
    Electronic Shutter TimeAuto: 1/3-1/100000Sec
    Minimun IlluminationColor: 0.006 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
    S/N Ratio60dB
    Scanning SystemProgressive
    Video OutputNetwork
    Reset ButtonOptional
    Lens
    Focus Length2.7-13.5mm Motor Zoom, horizontal FOV 103°—29°, vertical FOV 54°—16°, diagonal FOV 124°—33°
    Focus ControlAuto
    Lens TypeAuto
    ApertureF1.6 - F3.3
    Pixels5MP
    Night Vision
    Supplement Light42µ x 4PCS
    Supplement Light Distance40M
    Supplement Light StatusAuto Control
    Supplement Light Power OnSmart, Manual & Timed mode
    Network
    EthernetRJ-45 (10/100Base-T)
    WirelessN/A
    ProtocolTCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,  RTCP ,PPPoE, NTP,  SMTP, UDP, SNMP,Qos,802.1x
    ONVIFSupport ONVIF 19.12(Profile S/T/G)
    P2PYES
    POEInternal, Support IEEE 802.3af
    Video Delay0.3S (Within the Lan)
    Main Stream 12592*1944@30fps
    Main Stream 22560*1440@30fps
    Main Stream 31920*1080@30fps
    1280*720@30fps
    Sub Stream 11280*720@30fps
    Sub Stream 2720*480@30fps
    Sub Stream 3N/A
    Tri StreamN/A
    IE Brower IE8-11, Google Chrome, Firefox , Mac Safari
    Smart PhoneiPhone, Android
    AI Function
    Intelligent AnalysisIntrusion Detetion(based on human and Vehicle Detection), Line Cross Detetion(based on human and Vehicle Detection), Loiter Detetion(based on human detection), People Gather Detecion(based on human detection), Motion detection based on human detection, Enter Area(based on human and Vehicle Detection), Leave Area(based on human and vehicle Detection)
    Camera Features
    Day/NightColor/ B&W (IR-CUT )
    Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, Anti Flicker, Video Tampering,HLC
    Full ColorN/A
    Corridor PatternSupport
    Defog  ModeN/A
    ROISupport
    BLCSupport
    WDRSupport
    Motion DetectionSupport(support enable the detection based on human movement only)
    Privacy  Masking3 Rectangular Zone
    Recording ModeNVR/CMS/Web
    LanguageChinese Simplified, Chinese Traditional, English, Russian, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian,  Arabic, Vietnamese, Thai, Hungarian
    Interface
    AudioOptional Audio IN/OUT
    AlarmN/A
    SD Card SlotN/A
    RS485N/A
    General
    HousingCover:Plastic Main Body:Metal , IP67
    Anti-cut BracketNO
    IR Cut FilterYES
    Operation Temperature-20℃ ~ +60℃ RH95% Max
    Storage Temperature-20℃ ~ +60℃ RH95% Max
    Power SourceDC12V±10%, 950mA
    Dimension179(W) x 90(H) x 90(D)mm
    Weight1.65Kgs

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
