LIRDCAFG400

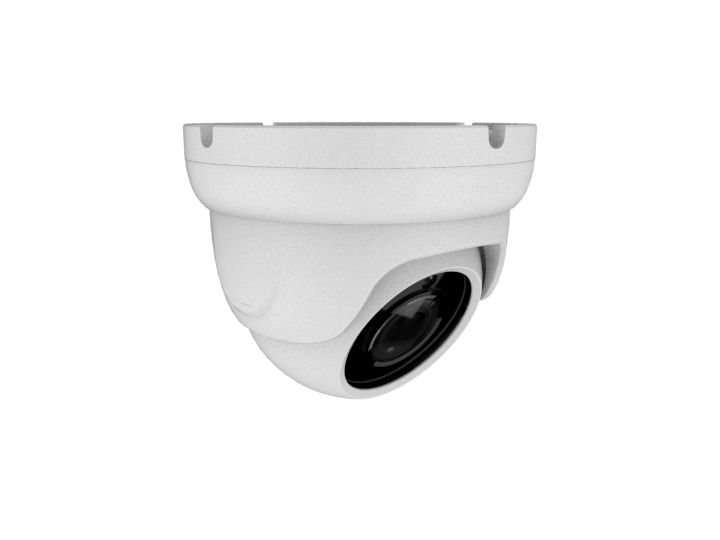

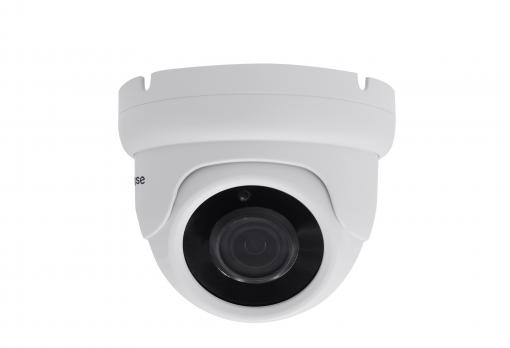

4MP Outdoor Infrared Varifocal Conch Network camera
  • •    High quality imaging with 2MP resolution;
  • •    1/3"Progressive Scan CMOS Sensor;
  • •    Support H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG Compression ;
  • •    Minimun Illumination:0.03Lux,Infrared Distance:30m;
  • •    Support DWDR;
  • •    Housing: Metal , IP67
  • Specification
  • Accessories
  • Download
    Camera
    Image Sensor1/3" Progressive Scan CMOS Sensor
    Resolution4MP
    Effective Pixels2560(H)*1440(V)
    Compression H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
    Audio CompressionG711A/U,AAC
    TV SystemPAL/NTSC
    Electronic Shutter TimeAuto: 1/3-1/100000Sec
    Minimun IlluminationColor: 0.03 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
    S/N Ratio60dB
    Scanning SystemProgressive
    Video OutputNetwork
    Reset ButtonOptional
    Lens
    Focal Length & FOV2.8-12mm Motor Zoom, horizontal FOV 91°—31°, vertical FOV 49°—17°, diagonal FOV 108°—35°
    Lens TypeManual
    Focus ControlManual
    ApertureF1.4-F2.8
    Pixels4MP
    Night Vision
    Supplement Light14µ x 24PCS
    Supplement Light Distance30M
    Supplement Light StatusAuto Control
    Supplement Light Power OnSmart, Manual & Timed mode
    Network
    EthernetRJ-45 (10/100Base-T)
    WirelessN/A
    ProtocolTCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP,  SMTP, UDP,Qos,802.1x
    ONVIFSupport ONVIF 19.12(Profile S/T/G)
    P2PYES
    POEInternal, Support IEEE 802.3af
    Video Delay0.3S (Within the Lan)
    Main Stream 12688*1512@25fps
    Main Stream 22560*1440@30fps
    Main Stream 31920*1080@30fps
    1280*720@30fps
    Sub Stream 11280*720@30fps
    Sub Stream 2720*480@30fps
    Sub Stream 3N/A
    Tri StreamN/A
    IE Brower IE8-11, Google Chrome, Firefox , Mac Safari
    Smart PhoneiPhone, Android
    AI Function
    Intelligent AnalysisIntrusion Detetion(based on human and Vehicle Detection),motion detection based on human detection
    Camera Features
    Day/NightColor/ B&W (IR-CUT )
    Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering, HLC, Distortion
    Full ColorN/A
    Corridor PatternSupport
    Defog  ModeSupport
    ROISupport
    BLCSupport
    WDRDWDR
    Motion DetectionSupport(support enable the detection based on human movement only)
    Privacy  Masking3 Rectangular Zone
    Recording ModeNVR/CMS/Web
    LanguageChinese Simplified, Chinese Traditional, English, Russian, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian,  Arabic, Vietnamese, Thai, Hungarian
    Interface
    AudioOptional Audio IN/OUT
    AlarmN/A
    SD Card SlotOptional Internal, Support Max 512GB
    RS485N/A
    General
    HousingMetal , IP67
    Anti-cut BracketNO
    IR Cut FilterYES
    Operation Temperature-20℃ ~ +60℃ RH95% Max
    Storage Temperature-20℃ ~ +60℃ RH95% Max
    Power SourceDC12V±10%, 950mA
    Dimension¢119 x 98(H) mm
    Weight800g

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
