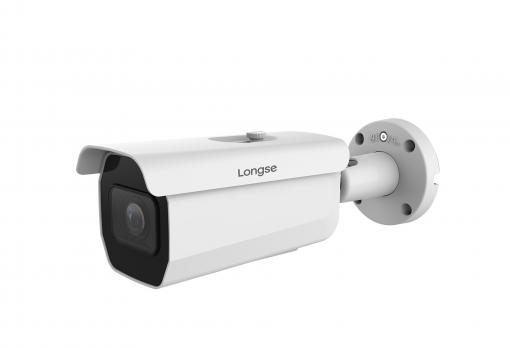

LBE90FG200
2MP Outdoor Infrared Fixed Bullet IP Camera
  • •    High quality imaging with 2MP resolution;
  • •    1/2.9"Progressive Scan CMOS Sensor;
  • •    Support H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG Compression ;
  • •    Minimum Illumination: 0.008 Lux, Infrared Distance:60m;
  • •    Support DWDR;
  • •    Housing: Cover:Plastic Main Body:Metal , IP67
  • Specification
  • Accessories
  • Download
    Camera
    Image Sensor1/2.9" Progressive Scan CMOS Sensor
    Resolution2MP
    Effective Pixels1920(H)*1080(V)
    Compression H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
    Audio CompressionG711A/U,AAC
    TV SystemPAL/NTSC
    Electronic Shutter TimeAuto: 1/3-1/100000Sec
    Minimun IlluminationColor: 0.008 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
    S/N Ratio60dB
    Scanning SystemProgressive
    Video OutputNetwork
    Reset ButtonOptional
    Lens
    Focal Length & FOV2.8 mm, horizontal FOV 105°, vertical FOV 56°, diagonal FOV 125°
    4 mm, horizontal FOV 84°, vertical FOV 43°, diagonal FOV 100°
    6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61°
    Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
    Focus ControlFixed
    ApertureF1.6
    Pixels2MP
    Night Vision
    Supplement Light42µ x 6PCS
    Supplement Light Distance60M
    Supplement Light StatusAuto Control
    Supplement Light Power OnSmart, Manual & Timed mode
    Network
    EthernetRJ-45 (10/100Base-T)
    WirelessN/A
    ProtocolTCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP,  SMTP, UDP,Qos,802.1x
    ONVIFSupport ONVIF 19.12(Profile S/T/G)
    P2PYES
    POEInternal, Support IEEE 802.3af
    Video Delay0.3S (Within the Lan)
    Main Stream 12304*1296@30fps
    Main Stream 21920*1080@30fps
    Main Stream 31280*720@30fps
    Sub Stream 11280*720@30fps
    Sub Stream 2720*480@30fps
    Sub Stream 3N/A
    Tri StreamN/A
    IE Brower IE8-11, Google Chrome, Firefox , Mac Safari
    Smart PhoneiPhone, Android
    AI Function
    Intelligent AnalysisIntrusion Detetion(based on human detection),motion detection based on human detection
    Camera Features
    Day/NightColor/ B&W (IR-CUT )
    Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering, HLC, Distortion
    Full ColorN/A
    Corridor PatternN/A
    Defog  ModeSupport
    ROISupport
    BLCSupport
    WDRDWDR
    Motion DetectionSupport(support enable the detection based on human movement only)
    Privacy  Masking3 Rectangular Zone
    Recording ModeNVR/CMS/Web
    LanguageChinese Simplified, Chinese Traditional, English, Russian, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian,  Arabic, Vietnamese, Thai, Hungarian
    Interface
    AudioOptional Audio IN/OUT
    AlarmN/A
    SD Card SlotOptional Internal, Support Max 512GB
    RS485N/A
    General
    HousingCover:Plastic Main Body:Metal , IP67
    Anti-cut BracketNO
    IR Cut FilterYES
    Operation Temperature-20℃ ~ +60℃ RH95% Max
    Storage Temperature-20℃ ~ +60℃ RH95% Max
    Power SourceDC12V±10%, 950mA
    Dimension179(W) x 90(H) x 90(D)mm
    Weight1.65Kgs

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
