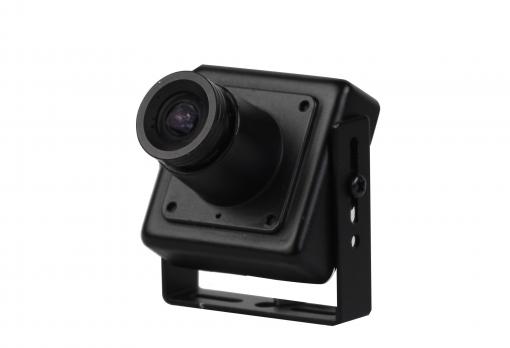

LMBM25HTC200F
2MP Fixed Miniature Camera
- • AHD/CVI/TVI/CVBS 4 IN 1
- • 1/3"CMOS Sensor
- • Minimum Illumination：0.01Lux
- • 3.6mm Lens
- • Support OSD Menu
- • Support UTC
- • Housing: Metal
| Camera | |
| Image Sensor | 1/3" CMOS Sensor |
| Image Resolution | 2M:1920*1080 |
| TV System | PAL/NTSC |
| Electronic Shutter | Auto |
| Minimun Illumination | Color : 0.01 lux@F2.0, AGC ON; B/W : 0 lux with IR |
| Scanning System | Progressive Scan |
| Lens | |
| Focus Length | 3.6mm |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Night Vision | |
| IR Cut Filter | YES |
| Infrared LED | N/A |
| Infrared Distance | N/A |
| IR Status | N/A |
| Camera Features | |
| Starlight | N/A |
| Day/Night | NO |
| OSD Menu | YES |
| WDR | DWDR |
| UTC | YES |
| Noise Reduction | 3DNR |
| Coaxial Audio | N/A |
| White Balance | AUTO / MANUAL |
| Gain Control | AUTO |
| General | |
| Housing | Metal |
| Bracket | YES |
| Operation Temperature | -10℃ ~ +60℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 150mA |
| Dimension | 25(W) x 10(H) x 25(D)mm |
| Weight | 150g |
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
