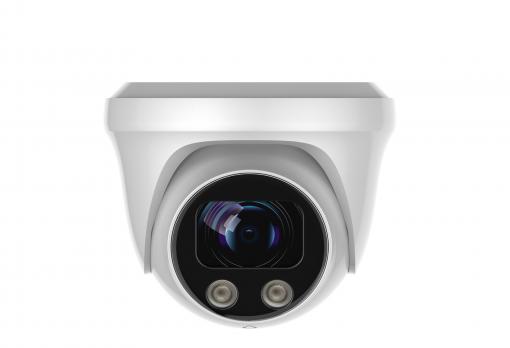

CMLBHD800ES - Longse

Longse designs HD cameras to provide high-definition images for surveillance centers. Its simple connection and operation is easier to accept for traditional security engineers.

Multiple product levels are available to fulfill various demands.
- HD Camera includes Value series and Pro series, which is highly cost-effective series that is to provide excellent performance at an affordable price.
- The Full Color Series is for some scenes with low light at night. This series camera offers full, vibrant color, in low-light settings.
- PTZ is an abbreviation for pan, tilt and zoom and reflects the movement options of the camera, which is commonly used in applications such as surveillance, video conferencing, live production, lecture capture and distance learning.
- Special camera is for some special scenes where need a camera for a wide range of surveillance.

Camera
Image Sensor	1/2.8'' SONY CMOS sensor
Image Resolution	8M:38402160 4M:25601440 2M:1920*1080
TV System	PAL/NTSC
Electronic Shutter	Auto
Minimun Illumination	Color : 0.01 lux@F1.6, AGC ON; B/W : 0 lux with IR
Scanning System	Progressive Scan
Lens
Focus Length	6mm
Focus Control	Fixed
Lens Type	Fixed
Night Vision
IR Cut Filter	YES
Infrared LED	42µ x 2PCS
Infrared Distance	25M
IR Status	AGC Auto Control
Camera Features
Starlight	N/A
Day/Night	YES
OSD Menu	YES
WDR	120dB
UTC	YES
Noise Reduction	3DNR
Coaxial Audio	N/A
White Balance	AUTO / MANUAL
Gain Control	AUTO
General
Housing	Metal, IP67
Bracket	NO
Operation Temperature	-10℃ ~ +60℃ RH95% Max
Storage Temperature	-20℃ ~ +60℃ RH95% Max
Power Source	DC12V±10%, 500mA
Dimension	￠126 x 108(H)mm
Weight	800g
