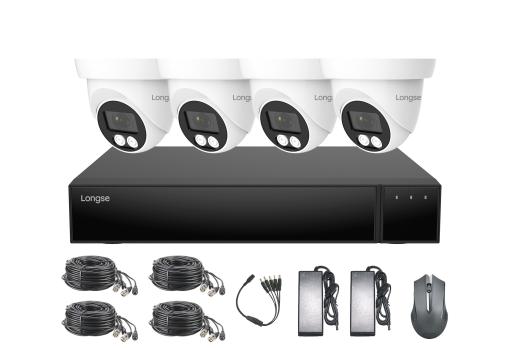

XVRT3004HC4MD800
4CH IR XVR Kits
  • •    1x XVR3004C1P;
  • •    4 x CMSDTHC800FKE;
  • •    4x 18m BNC+DC Cable, 1x (1 to 4CH power cable splitter) ;
  • •    1xUSB 2.0 Mouse;
  • •    2 x DC12V2A Adaptor
  • Specification
  • Accessories
  • Download
    Package
    XVR1x XVR3004C1P
    Camera4 x  CMSDTHC800FKE
    Cable4x 18m BNC+DC Cable, 1x (1 to 4CH power cable splitter)
    Mouse1xUSB 2.0 Mouse
    Hard Disk No
    Adaptor2xDC12V/2A
    Weight
    Camera ModelCMSDTHC800FKE
    Image Sensor1/2.5" CMOS sensor
    Image Resolution8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080
    TV SystemPAL/NTSC
    Electronic ShutterAUTO
    Minimun IlluminationColor : 0.03 lux@F2.0, AGC ON; B/W : 0 lux with IR
    Scanning SystemProgressive  Scan
    Lens
    Focus Length3.6mm
    Focus ControlFixed
    Lens TypeFixed
    Night Vision
    IR Cut FilterYES
    Infrared LED20µ x 2PCS
    Infrared Distance25M
    IR StatusAGC Auto Control
    Camera Features
    StarlightColor/ B&W (IR-CUT )
    Day/Night  YES
    OSD Menu YES
    WDR DWDR
    UTC YES
    Noise Reduction DNR
    Coaxial AudioYES
    White Balance AUTO / MANUAL
    Gain Control AUTO
    General
    HousingCover&Base: Plastic  Eyeball: Metal,IP65
    BracketNO
    Operation Temperature-10℃ ~ +60℃ RH95% Max
    Storage Temperature-20℃ ~ +60℃ RH95% Max
    Power SourceDC12V±10%, 550mA
    Dimensionφ90.6* 79.5mm
    Weight171.5g
    ModelXVR3004C1P
    System
    Main ProcessorMC6630
    Operating SystemEmbedded LINUX
    Video
    InputNormal Mode:
    Default: 4*(AHD/TVI/CVI:8M;AHD/TVI:5M,AHD/TVI/CVI:4MP/3MP/2MP/720P/960H)+2*IPC(Max5MP)
    Analog+Network: 2*(AHD/TVI/CVI:8M;AHD/TVI:5M,AHD/TVI/CVI:4MP/3MP/2MP/720P/960H)+7*IPC(MAX 5MP)
    Lite Mode:
    Default: 4*(TVI/AHD/CVI: 5M@12fps;  AHD/TVI/CVI: 4M@15fps;  AHD/TVI/CVI: 3M@18fps; AHD/TVI/CVI: 1080P/720P;  Analog: 960H)+2*network(MAX 5MP)
    Analog+Network: 2*Analog(TVI/AHD/CVI: 5M@12fps;  AHD/TVI/CVI: 4M@15fps;  AHD/TVI/CVI: 3M@18fps;  AHD/TVI/CVI: 1080P/720P;  Analog: 960H)+7*network(MAX 5MP)
    Network: 16*5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ≤48M)
    Input4CH BNC
    Signal TypeAnalog/AHD/CVI/TVI 2.0/TVI 3.0/Network
    Output1HD,1 VGA, 1 CVBS
    Audio
    Input1 Channel, RCA,support AOC
    Two-way AudioNO
    Output1 Channel, RCA
    Alarm
    Sensor Input4 CH
    Output1 CH
    Motion Detection4 Channel(max 16 Channel in pure network mode)
    Trigger EventsRecording,  Email, Screen tips, Buzzer, Push notifications(motion detection)
    Email AlarmSend Image to The Designated E-mail
    AI Function
    Human DetectionYES
    PTZ
    InterfaceRS485
    ProtocolPelco-D, Pelco-P
    Baud Rate110~921600
    Address0~255
    Display
    VGAResolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
    HD OutputResolution: 1920 × 1080P/60Hz,  1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
    Display Split16 Channel/9 Channel/4 Channel / 1Channel
    Privacy Masking3 Rectangular Zones (Each camera)
    OSDCamera title, Time, Video loss, Alarm, Motion detection, Recording
    Recording
    Video CompressionH.265/H.265+/H.264/H.264+
    Audio CompressionG.711U/G.711A
    Resolution5MP(2592×1944),8MP_LITE(1920×2160),5MP_HALF(1296×1944),4MP(2560×1440),4MP_HALF(1280×1440),3MP(2048×1536),3MP_Lite(1024×1536),1080P(1920×1080),720P(1280×720),960H(960×480)
    Video QualityLowest/Low/Ordinary/Good/Better/Best
    Record RateNormal Mode:
    Analog:  PAL:8MP_LITE(1920×2160 4*8fps), 5MP(2592×1944 4*6fps), 5MP_HALF(1296×1944 4*10fps),4MP(2560×1440 4*8fps),4MP_HALF(1280×1440 4*15fps),3MP(2048×1536 4*9fps),3MP_Lite(1024×1536 4*18fps), 1080P(1920x1080 4*15fps),720P(1280×720 4*25fps), 960H(960x480 4*25fps)
    NTSC:8MP_LITE(1920×2160 4*8fps), 5MP(2592×1944 4*6fps),5MP_HALF(1296×1944 4*10fps),4MP(2560×1440 4*8fps),4MP_HALF(1280×1440 4*15fps),3MP(2048×1536 4*9fps),3MP_Lite(1024×1536 4*18fps), 1080P(1920x1080 4*15fps),720P(1280×720 4*25fps), 960H(960×480 4*25fps)
    Lite Mode:
    PAL:5MP_Lite(1296×1944 4*10fps),4MP_Lite(1280×1440 4*15fps),3MP_Lite(1024×1536 4*18fps),1080N(960x1080 4*25fps),720P(1280×720 4*25fps), 960H(960×480 4*25fps)
    NTSC: 5MP_Lite(1296×1944 4*10fps),4MP_Lite(1280×1440 4*15fps),3MP_Lite(1024×1536 4*18fps),1080N(960x1080 4*25fps),720P(1280×720 4*25fps), 960H(960×480 4*30fps)
    Pure IP(H.265):
    PAL: 5MP@8×25fps,4MP@12x25fps,3MP@12×25fps,1080P@16×25fps,960P@16×25fps,720P@16×25fps,D1@16×25fps
    NTSC: 5MP@8×30fps,4MP@12×30fps,3MP@12×30fps,1080P@16×30fps, 960P@16×30fps, 720P@16×30fps, D1@16×30fps
    Record ModeManual\Timer\Motion Detection\Alarm\Intelligent
    Playback & Backup
    Decode Capability2*1080P@30fps
    Sync PlaybackNormal Mode:
    Pure Analog: 4CH 5M@6fps, 3CH 8M_Lite@8fps, 4CH 4M@8fps, 4CH 3M@9fps, 3CH 1080p@15fps
    Mix Mode:  1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
    Pure IPC:  1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps,  2CH 1080P@30fps
    Lite Mode:
    Pure Analog:4CH 5M_LITE@10fps,CH 4M_LITE@15fps,3M_LITE@18fps,4CH 1080N@25fps
    Mix Mode:  1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
    Pure IPC:  1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps,  2CH 1080P@30fps
    Remote Playback4 Channel / 1Channel
    Search ModeALL, Channel, Manual, Time, Date, Motion Detection
    Playback FunctionsPlay, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
    Smart Phone Playback4 Channel
    Backup ModeUSB Device(with fomat FAT 32 )/Network/FTP
    Network
    Interface1 RJ45 10M/100M Adaptive Ethernet Interface
    Network FunctionsTCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
    DDNSDyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN
    Web BrowserEdge,IE8-11, Google Chrome , Firefox ,Safari
    CMS SoftwareSupport  Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS
    Extra StreamCIF/D1(1-30fps)
    Smart PhoneiPhone, Android
    Hard Disk Driver
    Interface Type1 SATA Interface
    Capacity1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)
    General
    LanguageSimplified Chinese,Traditional Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese,German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese, Ukrainian
    UTC ControlYES
    USB Interface2 USB 2.0 Interfaces
    Power consumptionDC 12V/1.5A  ≤ 7W (without HDD)
    Working Environment-10~55℃/10~90%
    Dimension (W×D×H)260* 230*43(mm)
    Weight1.07kg (Without HDD)

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
