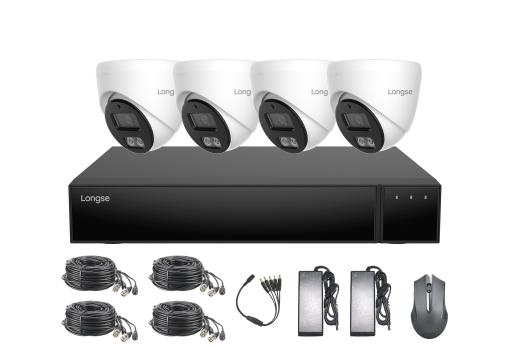

XVRT3004C4PD500
4CH IR XVR Kits
- • 1x XVR3004C1N；
- • 4 x TP1BTHC500FPE-ECO;
- • 4x 18m BNC+DC Cable, 1x (1 to 4CH power cable splitter) ;
- • 1xUSB 2.0 Mouse；
- • 2 x DC12V2A Adaptor
| Package | |
| XVR | 1x XVR3004C1N |
| Camera | 4 x TP1BTHC500FPE-ECO |
| Cable | 4x 18m BNC+DC Cable, 1 x 4CH Power Splitter Cable |
| Mouse | 1xUSB 2.0 Mouse |
| Hard Disk | No |
| Adaptor | 2 x DC12V2A Adaptor |
| Weight | |
| Camera Model | TP1BTHC500FPE-ECO |
| Image Sensor | 1/3" CMOS sensor |
| Image Resolution | 5M:2592*1944 4M:2560*1440 2M:1920*1080 |
| TV System | PAL/NTSC |
| Electronic Shutter | AUTO |
| Minimun Illumination | Color : 0.03 lux@F2.0, AGC ON; B/W : 0 lux with IR |
| Scanning System | Progressive Scan |
| Lens | |
| Focus Length | 3.6mm |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Night Vision | |
| IR Cut Filter | YES |
| Infrared LED | 20µ x 2PCS |
| Infrared Distance | 25M |
| IR Status | AGC auto control |
| Camera Features | |
| Starlight | Color/ B&W (IR-CUT ) |
| Day/Night | YES |
| OSD Menu | YES |
| WDR | DWDR |
| UTC | YES |
| Noise Reduction | DNR |
| Coaxial Audio | YES |
| White Balance | AUTO / MANUAL |
| Gain Control | AUTO |
| General | |
| Housing | Plastic |
| Bracket | NO |
| Operation Temperature | -10℃ ~ +60℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 550mA |
| Dimension | φ90.6* 79.5mm |
| Weight | 171.5g |
| Model | XVR3004C1N |
| System | |
| Main Processor | MC6630 |
| Operating System | Embedded LINUX |
| Video | |
| Input | Analog: 4*(TVI/AHD: 5M@12fps; AHD/TVI/CVI: 4M@15fps; AHD/TVI/CVI: 1080P/720P@30fps; Analog: 960H) Analog+Network: 2*Analog(5MP)+4*network(MAX 5MP) Network: 9*5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ≤48M) |
| Input | 4CH BNC |
| Signal Type | Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network |
| Output | 1HD,1 VGA |
| Audio | |
| Input | 1 ChannelRCA,support AOC |
| Two-way Audio | NO |
| Output | 1 Channel RCA |
| Alarm | |
| Sensor Input | NO |
| Output | NO |
| Motion Detection | 4 Channel(max 9 Channel in pure network mode) |
| Trigger Events | Recording, Email, Screen tips, Push notifications(motion detection) |
| Email Alarm | Send Image to The Designated E-mail |
| AI Function | |
| Human Detection | YES |
| PTZ | |
| Interface | NO |
| Protocol | Coaxial Control |
| Baud Rate | NO |
| Address | NO |
| Display | |
| VGA | Resolution:1920 × 1080P, 1280 × 1024 , 1280 × 720,1024 × 768 |
| HD Output | Resolution:1920 × 1080P, 1280 × 1024 , 1280 × 720,1024 × 768 |
| Display Split | 1/4/8/9 |
| Privacy Masking | 3 Rectangular Zones (Each camera) |
| OSD | Camera title, Time, Video loss, Motion detection, Recording |
| Recording | |
| Video Compression | H.265/H.264 |
| Audio Compression | G.711U/G.711A |
| Resolution | 5MP_Lite(1280×1952),4MP_Lite(1280×1440),1080N(960×1080),720P(1280×720),960H(960×480) |
| Video Quality | Lowest/Low/Ordinary/Good/Better/Best |
| Record Rate | Analog: PAL: 5MP_Lite(1296×1944 4*12fps),4MP_Lite(1280×1440 4*15fps),1080N(960x1080 4*25fps),720P(1280×720 4*25fps), 960H(960x480 4*25fps) NTSC:5MP_Lite(1296×1944 4*12fps),4MP_Lite(1280×1440 4*15fps),1080N(960x1080 4*25fps),720P(1280×720 4*30fps), 960H(960x480 4*30fps) Pure IP(H.265): PAL: 5MP@8×25fps,4MP@9x25fps,3MP@9×25fps,1080P@9×25fps,960P@9×25fps,720P@9×25fps,D1@9×25fps NTSC: 5MP@8×30fps,4MP@9×30fps,3MP@9×30fps,1080P@9×30fps, 960P@9×30fps, 720P@9×30fps, D1@9×30fps |
| Record Mode | Manual\Timer\Motion Detection\Intelligent |
| Playback & Backup | |
| Decode Capability | 2*1080P@30fps |
| Sync Playback | Pure Analog: 3CH 5MP_LITE @12fps,3CH 4MP_LITE @15fps,4CH 1080N@25fps,4CH 720P@30fps Mixture mode: 1CH 5MP@30fps,2CH 5M_LITE@12fps,2CH 1080p@25fps Pure Network: 1CH 5MP @30fps,1CH 4MP @30fps,2CH 1080P@30fps,4CH 720P@30fps |
| Remote Playback | 4 Channel / 1Channel |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection,Human Detection,Tag |
| Playback Functions | Play; Pause; Stop; Fast play; Slow Play;Rewind; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Backup Selection; Digital Zoom |
| Smart Phone Playback | 4 Channel |
| Backup Mode | USB Device(with fomat FAT 32 )/Network/FTP |
| Network | |
| Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface |
| Network Functions | TCP/IP,HTTP,HTTPS,SMTP,DHCP,FTP,DDNS,RTP,RTSP,RTCP,NTP,UPnP |
| DDNS | Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN,DYNAMIC_PLANET,EASY_PLANET |
| Web Browser | Edge,IE8-11, Google Chrome , Firefox ,Safari |
| CMS Software | Support Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS |
| Extra Stream | CIF/D1(1-30fps) |
| Smart Phone | iPhone, Android |
| Hard Disk Driver | |
| Interface Type | 1 SATA Interface |
| Capacity | 1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB) |
| General | |
| Language | Simplified Chinese,Traditional Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese,German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese, Ukrainian |
| UTC Control | YES |
| USB Interface | 2 USB 2.0 Interfaces |
| Power consumption | DC 12V/1.5A ≤ 7W (without HDD) |
| Working Environment | -10~55℃/10~90% |
| Dimension (W×D×H) | 260* 230*43(mm) |
| Weight | 0.86Kg (Without HDD) |
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
