R4B

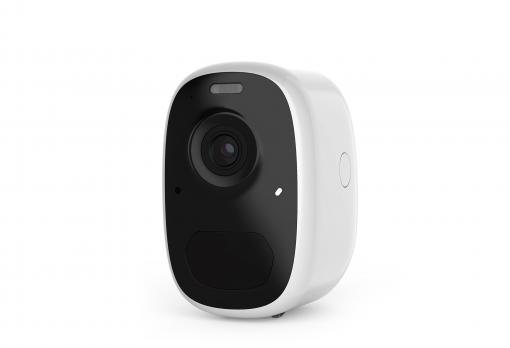

4MP Battery Powered IP Camera
  • •    High quality imaging with 4MP resolution;
  • •    1/3"Progressive Scan CMOS;
  • •    Support H.264/H.265 Compression ;
  • •    Support WIFI, WIFI Range: No obstacles 100m Max. ;
  • •    Support Motion Detection、PIR human body infrared detection;
  • •    Support WDR;
  • •    Housing: Plastic,IP65
  • Specification
  • Accessories
  • Download
    SPECIFICATION
    Model NO.R4B
    Camera
    Image Sensor1/3" Progressive Scan CMOS
    Resolution4MP
    Effective Pixels2560(H)*1440(V)
    Compression H.264/H.265
    Electronic Shutter TimeAuto(1/1.5s~1/30000s)
    Minimun Illumination0.01 Lux
    S/N Ratio47dB
    Scanning SystemProgressive
    Video OutputWireless network
    Reset ButtonYes
    PTZ
    Horizontal Rotation Range N/A
    Tilt Rotation Range N/A
    Guard PointsN/A
    LENS Type
    Focus Length2.8mm F1.6
    Focus ControlFixed
    Lens TypeFixed
    Pixels4M Pixels
    Night Vision
    Infrared LED14μ x 2PCS + 14μ x 2PCS White light
    Infrared Distance7M
    IR StatusAGC auto control
    IR Power OnAuto Control
    Network
    EthernetN/A
    ProtocolTCP/IP、UDP/IP、DHCP、RTMP、MUTP
    ONVIFN/A
    P2PSupport
    4GN/A
    POEN/A
    Main Stream 12560*1440@15fps
    Main Stream 2N/A
    Main Stream 3N/A
    Sub Stream 11280*720@15fps
    Sub Stream 2N/A
    Sub Stream 3N/A
    Tri StreamN/A
    IE Brower N/A
    Smart Phonesupport
    Wireless
    Antena3dbi
    HotspotN/A
    Wi-FiWi-Fi(IEEE802.11b/g/n)
    WIFI RangeNo obstacles 100m Max.
    Camera Features
    Day/NightColor/ B&W (IR-CUT )
    Minimun Illumination0.01 Lux
    Image ConfigYES
    Corridor PatternN/A
    ROIN/A
    Defog  ModeN/A
    BLCSupport
    HDRN/A
    3DNRSupport
    DWDRWDR
    Motion DetectionSupport
    Privacy  MaskingN/A
    Recording ModeSDcard
    LanguageSimplified Chinese, English, Japanese, German, Russian, French, Italian, Spanish
    Function
    Audio2-Way Audio
    AlarmMotion Detection、PIR human body infrared detection
    SD Card SlotSupport Max 128G
    General
    Housingplastic,IP65
    BracketSupport
    IR Cut FilterYES
    PowerDC 5V/1.5A or 1 x 18650 (5200mAh)battery powered
    Use time: 6 months (under the condition that 20/10s videos are recorded every day)
    Standby time: 1 year
    Operation Temperature -10℃ ~ +45℃ RH80% Max
    Storage Temperature-20℃ ~ +60℃ RH90% Max
    Size84mm(L)*62mm(W)*96mm(H)

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
