Camera | |
Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS Sensor |
Resolution | 2MP 1080P |
Effective Pixels | 1945(H)*1097(V) |
Compression | H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG |
TV System | PAL/NTSC |
Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec |
Minimun Illumination | 0.001Lux |
S/N Ratio | ≥52dB |
Scanning System | Progressive |
Video Output | Network |
Reset Button | Internal |
Lens | |
Focus Length | Board Lens 6mm/F1.2 |
Focus Control | Fixed |
Lens Type | Fixed |
Pixels | 3MP |
Night Vision | |
Infrared LED | No, Support Whlit light LED 45µ x 4PCS |
Infrared Distance | / |
IR Status | / |
IR Power On | smart, manual & time mode |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Wireless | 3dbi ,Dual Antena Wi-Fi(IEEE802.11b/g/n/a/c) 2.4Ghz,5Ghz Range: No obstacles 300m Max |
Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP |
ONVIF | Support ONVIF 2.4 |
P2P | YES, Support QR Code |
POE | Optional, Support IEEE 802.3af |
Video Delay | 0.3S (Within the Lan) |
Main Stream 1 | 2048*1536@15fps |
Main Stream 2 | 1920*1080@30fps |
Main Stream 3 | 1280*720@30fps |
Sub Stream 1 | 720*480@15fps 720*480@30fps |
Sub Stream 2 | / |
Sub Stream 3 | / |
Tri Stream | 352*288@15fps 352*288@30fps |
IE Brower | IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari(lower than version 12) |
Smart Phone | iPhone, iPad, Android, Android Pad |
Camera Features | |
Day/Night | Color |
Intelligence function | / |
Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering |
Starlight | YES |
Corridor Pattern | / |
Defog Mode | Support |
ROI | Support |
BLC | Support |
HDR | / |
WDR | Support |
Motion Detection | Support |
Privacy Masking | 3 Rectangular Zone |
Recording Mode | NVR/CMS/Web |
Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands |
Interface | |
Audio | Bulit in Audio in/out |
Alarm | / |
SD Card Slot | Yes, Support Max 128GB |
RS485 | / |
General | |
Housing | Metal ,IP66 |
Anti-cut Bracket | Optional |
IR Cut Filter | YES |
Operation Temperature | -20℃ ~ +60℃ RH95% Max |
Storage Temperature | -20℃ ~ +60℃ RH95% Max |
Power Source | DC12V±10%, 1150mA |

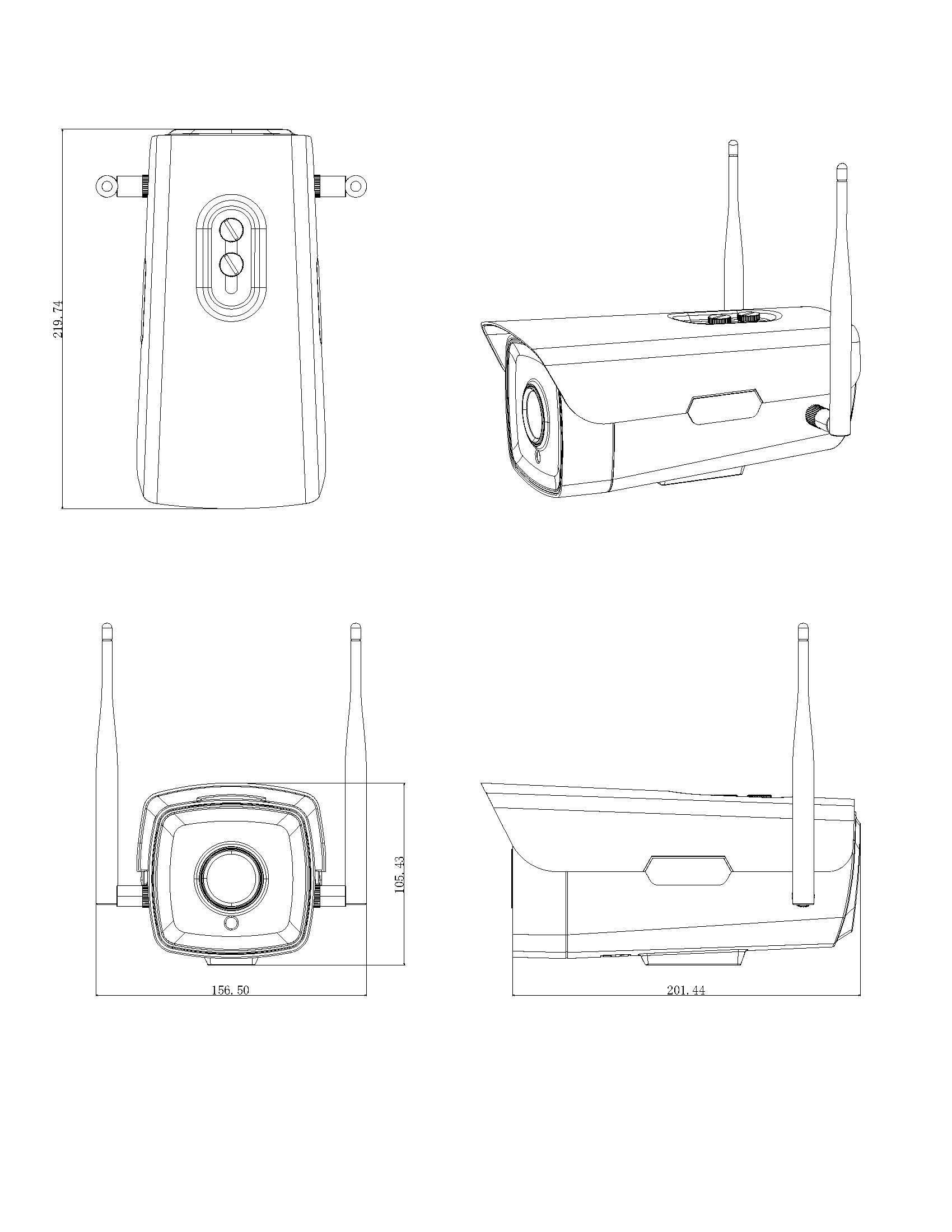

Dimension | 220(W) x 105(H) x 109(D)mm |
Weight | 1650g |
productTip
TYPE | INSTRUCTION | DESCRIPTION | EFFECTIVE DATA |
---|---|---|---|
LBB60SP200WL | 2019-01-25 |
