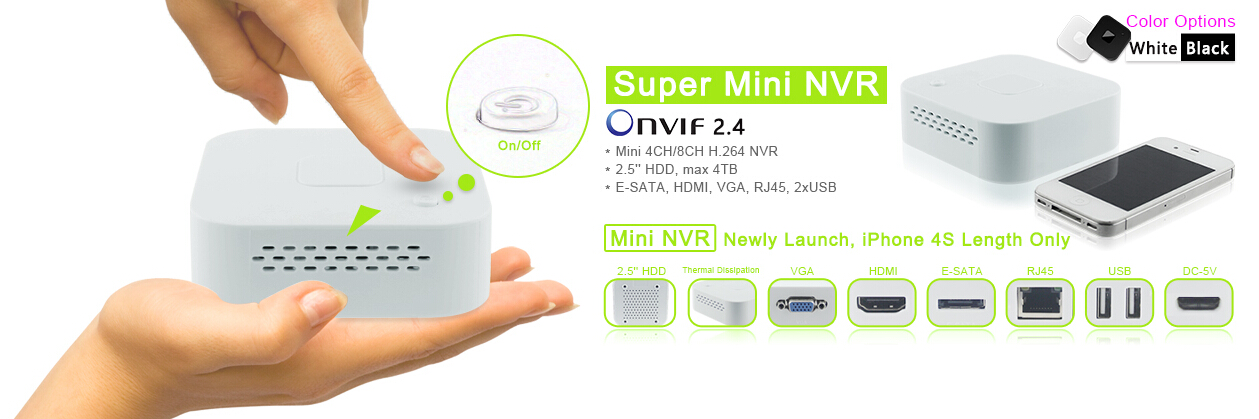

Longse NewSuper MiniNVR
Small Size4CH(LS-N9604M) & 8CH (LS-N2008M)
SupportP2P, Easily remote bySmartPhone

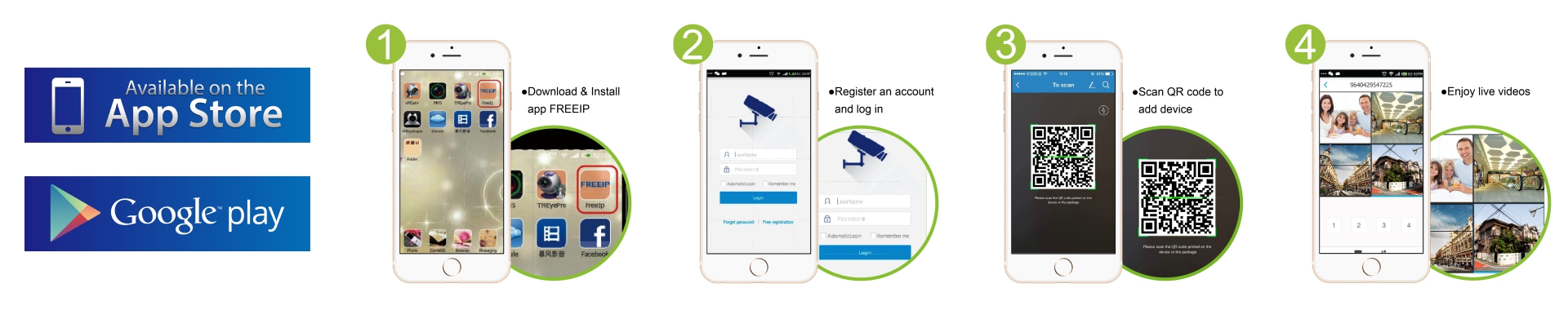

3. Scan QR code to add device
4. Enjoy live videos
Suggested HDD for NVR

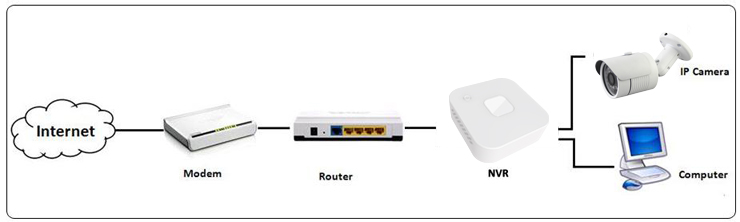

Quick Connection
TechnicalParameters
Model | 4CH/8CH |
Main Processor | ARM Cortex A9 @Max. 660MHz |
Operating system | Embedded LINUX |
Compression | H.264 |
Video Input | 4CH(1920×1080, 1280×960, 1280×720 etc.) |
Video Output | 1x HDMI, 1xVGA. Max resolution:1920x1080P/60H |
Preview Resolution | 1920x1080, 1280x1024, 1280x720, 1024x768 (Coincidence with IPC resolution, main stream for full screen, sub-stream for split screen ) |
Record Resolution | 1080P(1920x1080)/720P(1280x720)/D1(704x576/704x480) |
Playback | 1CH (Local/IE playback) |
Display Split | 1/4 |
OSD | Camera title, Time, Video loss, Motion detection, Recording |
Frame Rate | PAL: 25 frames / sec; NTSC: 30 frames / sec. |
Motion Detection | MD Zones: 396 ( 22 x 18) |
Ethernet | 1 RJ-45 port(10/100Mbps) |
Network Function | HTTP, TCP/IP, IPv4, RTSP, SMTP, NTP, DHCP, DNS, DDNS, IP Search, P2P |
Smart Phone | iPhone, iPad, Android |
Browser | IE8.0-11, Firefox, Google Chrome (under windows system) |
Onvif Version | ONVIF2.4 |
Backup Mode | USB Device/Network/E-SATA |

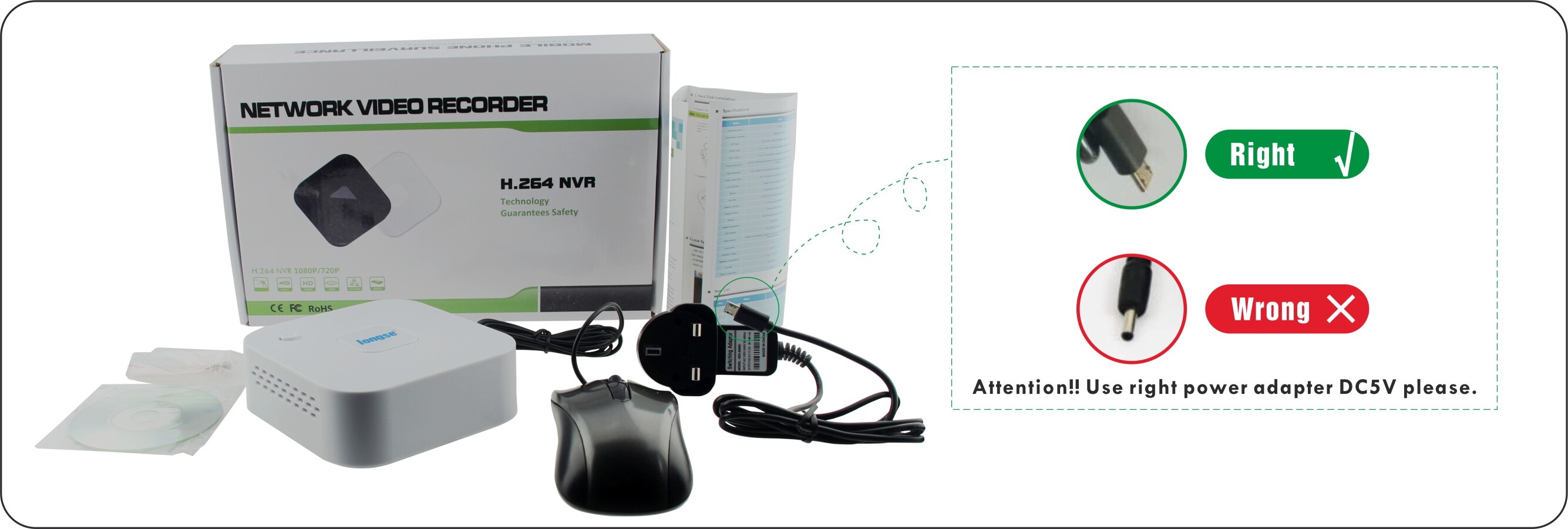

Package Details
Interesting to take samples? Email us atinfo@longse.complease.
Thanks for your attention!
Longse Electronics Limited
Jan.17th, 2015
