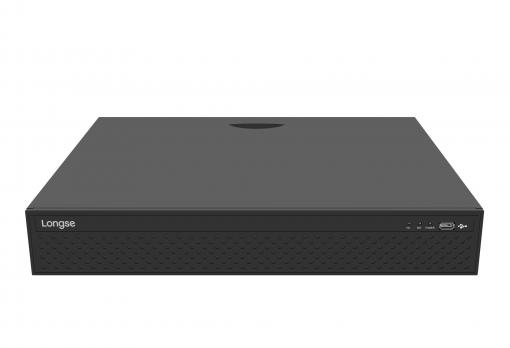

16CH 4K POE Network Video Recorder
  • •    Input: Max. 16CH;
  • •    support (two-way) Audio;
  • •    HD Output:4K(3840x2160);
  • •    Video Compression : H265/H264/H265+/H264+
  • •    16x Independent 100Mbps POE Network Interfaces
  • Specification
  • Accessories
  • Download
    Model NO.NVR3016HP
    Main Processor ARM Cortex A7 Processor
    Operating SystemEmbedded LINUX
    Input16CH(3840*2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
    Output  1 VGA, 1 HD
    Input1 Port RCA
    Output1 Port RCA(Linear, 1kΩ)
    Audio Bit Rate64kbps
    Audio Compression standardG711_U G711_A ADPCM_DVI4
    Intercomsupport (two-way)
    Sensor Input 16
    Output  4
    Motion Detection  16Channel, MD Zones: 396 (22 × 18)
    Trigger Events Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output
    HD Output11024x768/60Hz,1280x720/60Hz,1280x1024/60Hz,1920x1080/60Hz,4K(3840x2160)/30Hz
    HD Output2N/A
    VGA     Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
    Display Split 16CHxD1/9CHxD1/8CHxD1/6CHxD1//4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k
    Digital Zoom  YES
    OSDCamera Title, Time, Recording, Motion Detection, Event Alarm
    Video Compression  H265/H264/H265+/H264+
    Resolution  4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
    Record Rate  PAL :4K@12CHx25fps,5MP@16CH×25fp,4MP@16CHx25fp,3MP@16CH×25fp,1080P@16CH×25fp, 960P@16CH×25fp,720P@16CH×25fp, D1@16CH×25fp
    NTSC: 4K@12CHx30fps,5MP@16CH×30fp,4MP@16CH×30fp,3MP@16CH×30fp,1080P@16CH×30fp, 960P@16CH×30fp, 720P@16CH×30fp, D1@16CH×30fp
    Record Mode Manual\Timer\Motion Detection\ Alarm\Motion and Alarm\Smart Event
    Playback & Backup
    Local Sync Playback 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,16CH D1@30fps
    Decode Capability 4CH 1080P(1920x1080)@30fps
    Remote Sync Playback YES
    Search Mode ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm,Tag search
    Playback FunctionsPlay, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom,tag,clip
    Backup ModeUSB Device/Network
    Interface 1xRJ45 10M/100M/1000M Adaptive Ethernet Interface
    Incoming Bandwidth 130M
    Network Functions  TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
    Onvif onvif S,onvif T
    Web BrowserEdge,IE8-11, Google Chrome , Firefox ,Safari
    CMS SoftwareSupport  Windows 7/ Windows 8/Windows 10/MAC OS
    Cloud SupportYes
    Smart PhoneiPhone, iPad, Android, Android Pad
    POE  16 x Independent 100Mbps POE Network Interfaces(Output Power AF mode 15W per Interface), 45/78 line order, Total Power Output≤ 200W,  Support Plug and Play, Support network cable extended mode Max. 200M
    WIFI  N/A
    Interface Type  4 SATA Hard Disk Interface (3.5" SATA)
    Capacity Up to 32TB capacity
    eSATA1 eSATA interface
    Language  UITraditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek,  Vietnamese,Janpanese
    USB Interface 2 USB 2.0 Interfaces
    RS485 1port
    Power Supply AC 100-240V
    Working Environment-10~55℃/10~90%
    Weight9.8kg(without HDD)

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
