WIFI2108DED6FE200

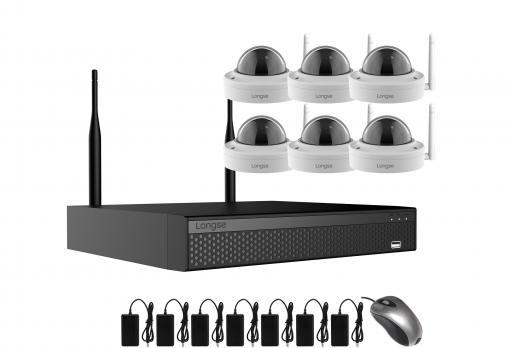

6CH WIFI Kits
  • •    1x KT-NVR2108DE6W;
  • •    6 x LMDNFE200W;
  • •    WIFI Range: No Obstacles 300m Max ;
  • •    1 x 1m Net Cable, 1xUSB 2.0 Mouse;
  • •    1xDC 12V 2A for WIFI NVR, 6xDC 12V 0.5A for WIFI IP Camera
  • Specification
  • Accessories
  • Download
    SPECIFICATION
    Model NO.WIFI2108DED6FE200
    Package
    NVR1x KT-NVR2108DE6W
    Camera6 x LMDNFE200W
    WIFI RangeNo Obstacles 300m Max
    Cable1 x 1m Net Cable
    Mouse1xUSB 2.0 Mouse
    Adaptor1xDC 12V 2A for WIFI NVR, 6xDC 12V 0.5A for WIFI IP Camera
    Weight5.3kg/SET
    Camera ModelLMDNFE200W
    Camera
    Image Sensor1/2.9"  Full HD CMOS Sensor
    Resolution2MP 1080P
    Effective Pixels1920(H)*1080(V)
    Compression H.264/H.264+/H.265/H.265+
    TV SystemPAL(default)
    Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec
    S/N Ratio≥52dB
    Scanning SystemProgressive
    Video OutputWireless network
    Reset ButtonYes
    LENS Type
    Focus Length3.6mm
    Focus ControlFixed
    Lens TypeFixed
    Pixels2M Pixels
    Night Vision
    Infrared LED14µ x 12PCS
    Infrared Distance20M
    IR StatusAuto Control
    IR Power OnAuto Control
    Network
    Ethernet/
    ProtocolTCP/IP,ICMP,RTP,RTSP,RTCP
    ONVIF/
    P2P/
    POE/
    Main Stream 11920*1080@1-15fps(default resolution:1920*1080/frame rate:15fps/bit rate:1Mbps)
    Main Stream 2/
    Main Stream 3/
    Sub Stream 1720*480@1-15fps(default frame rate:15fps/bit rate:0.5Mbps)
    Sub Stream 2/
    Sub Stream 3/
    Tri Stream/
    IE Brower /
    Smart Phone/
    Wireless
    Antena3dbi
    HotspotNO
    Wi-FiWi-Fi(IEEE802.11b/g/n)
    WIFI RangeNo obstacles 300m Max.
    Camera Features
    Day/NightColor/ B&W (IR-CUT )
    Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror,  White Balance, FLK(Flicker Control)
    Corridor Pattern/
    ROI/
    Defog  Mode/
    BLC/
    HDR/
    WDR/
    Motion DetectionSupport
    Privacy  Masking3 Rectangular Zone
    Recording ModeNVR
    Language/
    Interface
    Audio/
    Alarm/
    SD Card Slot/
    RS485/
    General
    HousingMetal , IP67
    Anti-cut BracketYES
    IR Cut FilterYES
    Operation Temperature-10℃ ~ +50℃ RH95% Max
    Storage Temperature-20℃ ~ +60℃ RH95% Max
    Power SourceDC12V±10%, 500mA
    Dimension157(W) x 70(H) x 66(D)mm
    Weight650g
    ModelNVR2108DEW
    System
    Main ProcessorARM Cortex A7 Quad-core Processor
    Operating SystemEmbedded LINUX
    Video
    Input9CH (3840x2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
    Output1 VGA, 1 HD
    Audio
    Input/
    Output1*3.5mm audio interface
    Audio Bit Rate64kbps
    Audio Compression standardG711u, G711a
    Alarm
    Sensor InputNO
    OutputNO
    Motion Detection9 Channel, MD Zones: 396 (22 × 18)
    Trigger EventsRecording, Email, FTP, Snapshot, Buzzer and Screen Tips
    Display
    HD1Resolution: 4K(3840x2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
    HD2/
    VGAResolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
    Display Split9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4K
    Digital ZoomYES
    OSDCamera Title, Time, Recording, Motion Detection, Alarm
    Recording
    Video CompressionH.264/H.265/H.264+/H.265+
    Resolution4K(3840x2160),25MP(2592×1944),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
    Record RatePAL :4K@8x25fps,5MP@9×25fp,4MP@9x25fp,3MP@9×25fp,1080P@9×25fp, 960P@9×25fp,720P@9×25fp, D1@9×25fp
    NTSC: 4K@8x30fps,5MP@9×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp, 960P@9×30fp, 720P@9×30fp, D1@9×30fp
    Record ModeManual\Timer\Motion Detection
    Playback & Backup
    Local Sync Playback1CH 4K@30fps,1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,9CH D1@30fps
    Decode Capability4CH 1080P@30fps
    Remote Sync PlaybackYES
    Search ModeALL, Channel, Manual, Time, Date, Motion Detection
    Playback FunctionsPlay, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom
    Backup ModeNetwork/USB2.0
    Network
    Interface1 RJ45 10M/100M Adaptive Ethernet Interface
    Incoming BandwidthWired 80Mbps; wireless 28Mbps
    Network FunctionsTCP/CP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p
    Onvif VersionSupport Onvif 2.4
    Web BrowserIE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
    CMS SoftwareSupport  Windows 7/ Windows 8/Windows 10
    Cloud Support(P2P)Yes
    Smart PhoneiPhone, iPad, Android, Android Pad
    POE/
    WIFISupport, WIFI Range: No Obstacles 300m Max.
    Storage
    Interface Type1 SATA Hard Disk Interface (2.5"/3.5" SATA)
    CapacityUp to 8TB capacity
    eSATA/
    General
    LanguageTraditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
    German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek,  Vietnamese,Japanese
    USB Interface2 USB 2.0 Interfaces
    RS485/
    Power SupplyDC12V/2A
    Working Environment-10~55℃/10~90%
    Dimension(W×D×H)219*217*40(mm)
    Weight2.0KG (without HDD)

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
