LBPAHTC130S

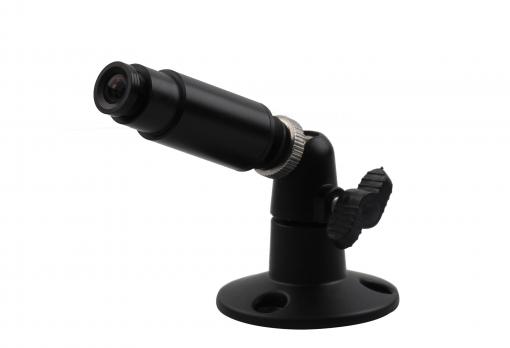

1.3MP Fixed Miniature Camera
  • •    AHD/CVI/TVI/CVBS 4 IN 1
  • •    1/3"SONY 1.3MP CMOS Sensor
  • •    3.6mm Lens
  • •    Support OSD Menu
  • •    Support UTC
  • •    Housing: Metal
  • Specification
  • Accessories
  • Download
    SPECIFICATION
    Model NO.LBPAHTC130SLBPACHT130SLBPATHC130S
    Video Output ModeAHD/CVI/TVI/CVBS 4 IN 1CVI/AHD/TVI/CVBS 4 IN 1TVI/AHD/CVI/CVBS 4 IN 1
    Camera
    Image Sensor1/3" SONY 1.3MP CMOS Sensor
    Image Resolution1.3M:1280*960
    TV SystemPAL/NTSC
    Electronic ShutterAUTO / MANUAL
    Scanning SystemProgressive  Scan
    Lens
    Focus Length3.6mm
    Focus ControlFixed
    Lens TypeFixed
    Night Vision
    IR Cut Filter/
    Infrared LED/
    Infrared Distance/
    IR Status/
    Camera Features
    Starlight/
    Day/Night  NO
    OSD Menu YES
    WDR NO
    UTC YES
    Noise Reduction DNR
    White Balance AUTO / MANUAL
    Gain Control AUTO
    General
    HousingMetal
    BracketYES
    Operation Temperature-10℃ ~ +60℃ RH95% Max
    Storage Temperature-20℃ ~ +60℃ RH95% Max
    Power SourceDC12V±10%, 150mA
    Dimension¢20 x 46(H) mm
    Weight200g

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
