CMSDHTC500FKEW

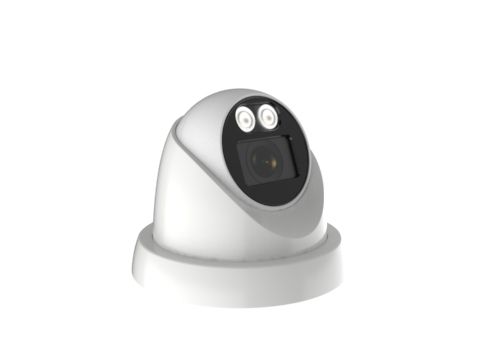

4K Lite Indoor Full Color Fixed Dome HD Camera
  • •
  • •    Video Output Mode:AHD/TVI/CVI: 8M@15fps;
  • •    1/2.5"CMOS sensor;
  • •    Support Warm white (4000K),Light Distance:up to 25m;
  • •    Support OSD Menu;
  • •    Support DWDR;
  • •    Housing:Metal&Plastic, IP65;
  • •
  • Specification
  • Accessories
  • Download
    SPECIFICATION
    Model NO.CMSDHTC500FKEWCMSDTHC500FKEW
    Video Output ModeAHD: 8M@15fps, 5M@20fps/12.5fps, 4M@30fps/25fps/15fps, 2M@30fps/25fps;                                               TVI: 8M@15fps/12.5fps,5M@20fps/12.5fps, 4M@30fps/25fps/15fps, 2M@30fps/25fps;
    CVI: 8M@15fps/12.5fps,5M@20fps/12.5fps, 4M/2M@30fps/25fps
    Camera
    Image Sensor1/2.5" CMOS sensor
    Image Resolution8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080
    TV SystemPAL/NTSC
    Electronic ShutterAuto
    Minimun Illumination0.01Lux
    Scanning SystemProgressive  Scan
    Lens
    Focus Length3.6mm
    Focus ControlFixed
    Lens TypeFixed
    Night Vision
    IR Cut FilterYES
    Infrared LEDNO,Suport Warm white (4000K)
    Light Distancup to 25m
    IR StatusAGC Auto Control
    Camera Features
    Starlight/
    Day/Night  Color
    OSD Menu YES
    WDR DWDR
    UTC YES
    Noise Reduction DNR
    Coaxial AudioYES(only TVI )
    White Balance AUTO / MANUAL
    Gain Control AUTO
    General
    HousingMetal&Plastic, IP65
    BracketNO
    Operation Temperature-30℃〜+50℃ RH95% Max
    Storage Temperature-20℃ ~ +60℃ RH95% Max
    Power SourceDC12V±10%, 450mA
    Dimension¢108x85(H)mm
    Weight400g

    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
