Longse B320 Junction Box Date: 2017-01-18

Longse B320 Junction Box

Wide space·Metal shell·Easy install·Multi-model matching

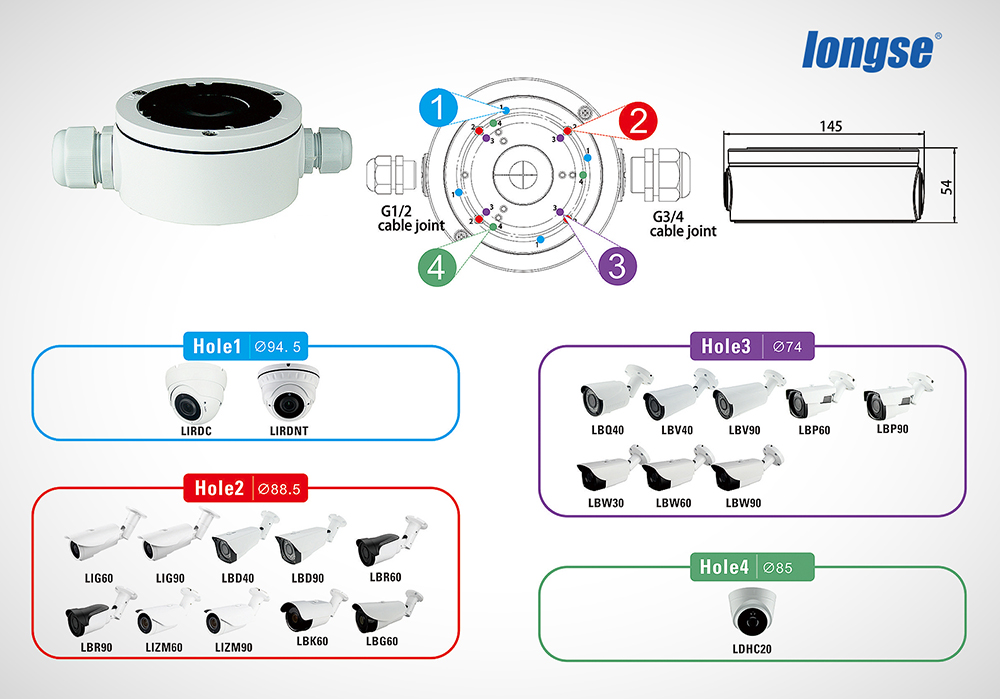

B320 can be used for dome cameras LIRDC/LIRDNT/LDHC20 andbulletcamerasLBQ40/LBV40/LBV90/LBP60/

LBP90/LBW30/LBW60/LBW90/LIG60/LIG90/LBD40/LBD90/LBR60/LBR90/LIZM60/LIZM90/LBK60/LBG60



Features

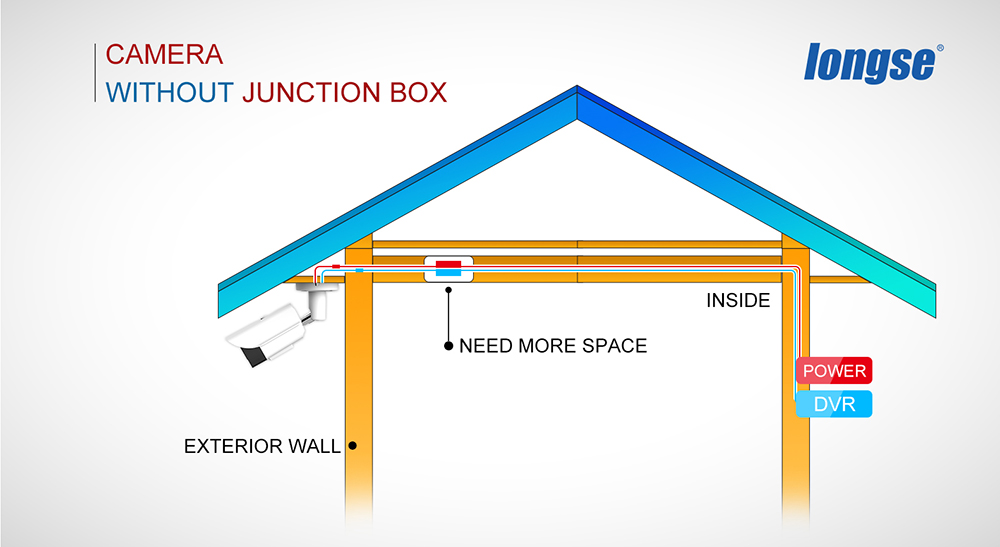

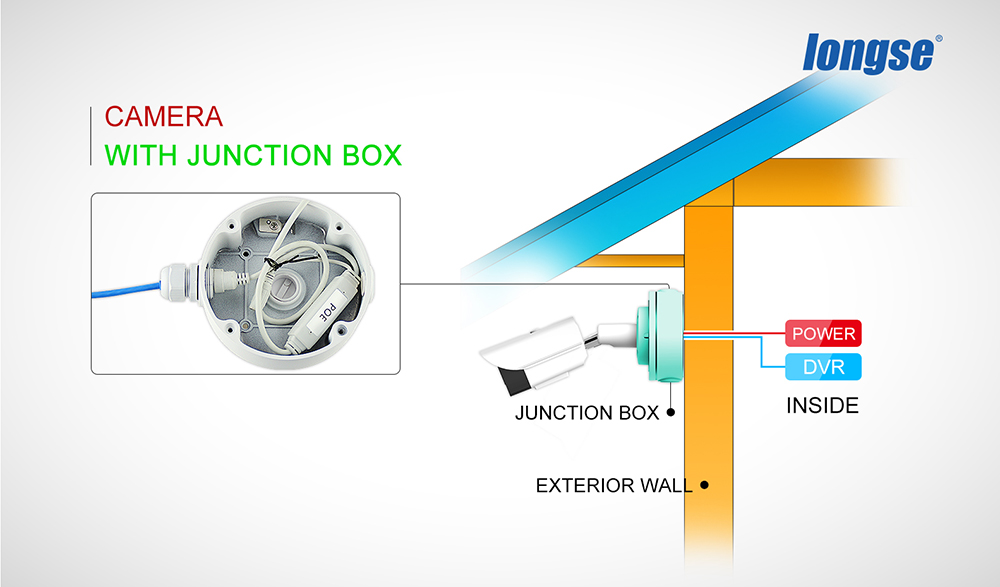

1.Junction box with big space, neat & integrated design,easy to hide cable and installation



2. Rubber ring design to make it dustproof and rainproof.

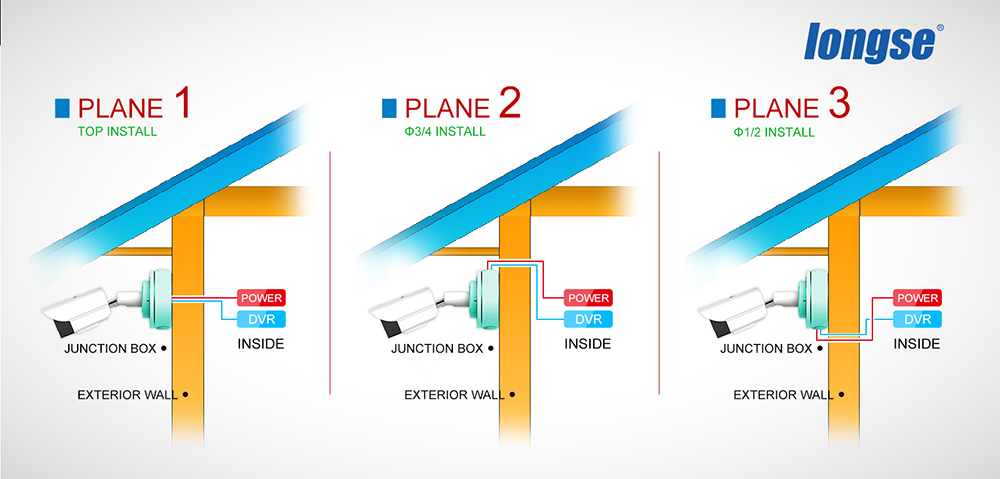

3. Easy installation, side out (via pipe G3/4 orG1/2) or ceiling out.

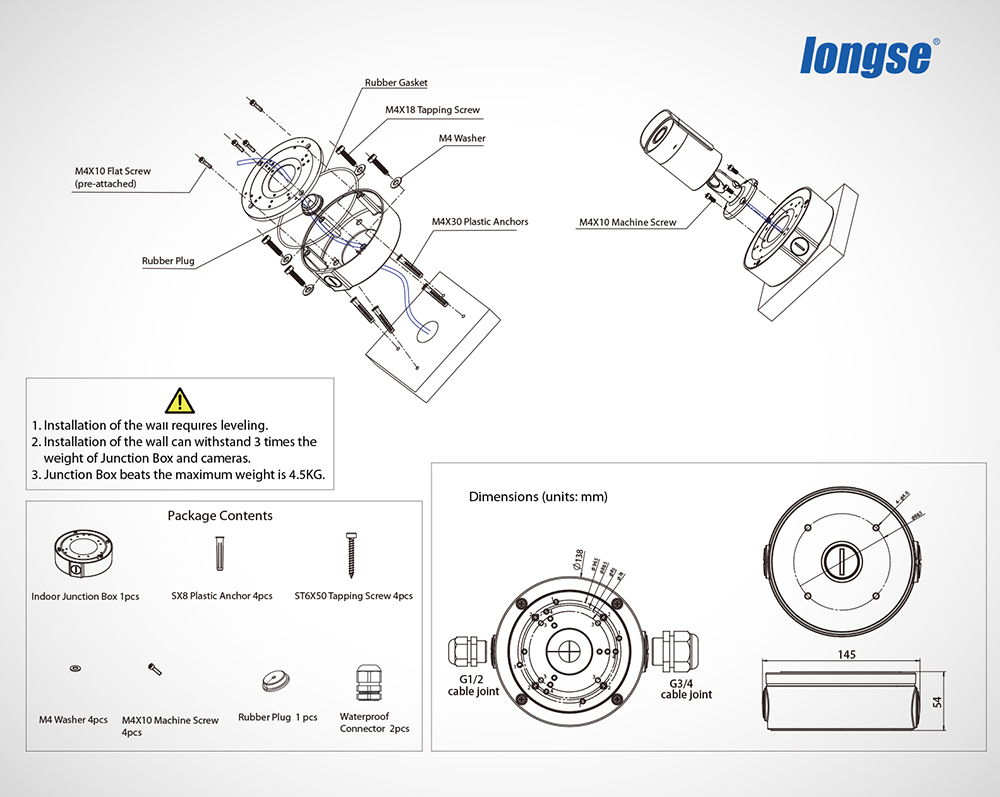

Dimension & Installation








Specification

Model

B320

General

Material

Aluminum

Dimension(W xD xH)

φ138x554(H) mm

Pipe Thread

G3/4;G1/2

Operating Temperature

-40~60

Humidity

0~90%RH

Load Bearing

4.5KG

Weight

600g
