Longse H.265 2U 64CH NVR with 8xSATA Date: 2017-01-17
Longse H.265 2U 64CH NVR with 8xSATA
▼Physical Structure
1. Support 8Mp Camera preview, storage, playback. Higher definition, never let go any details.

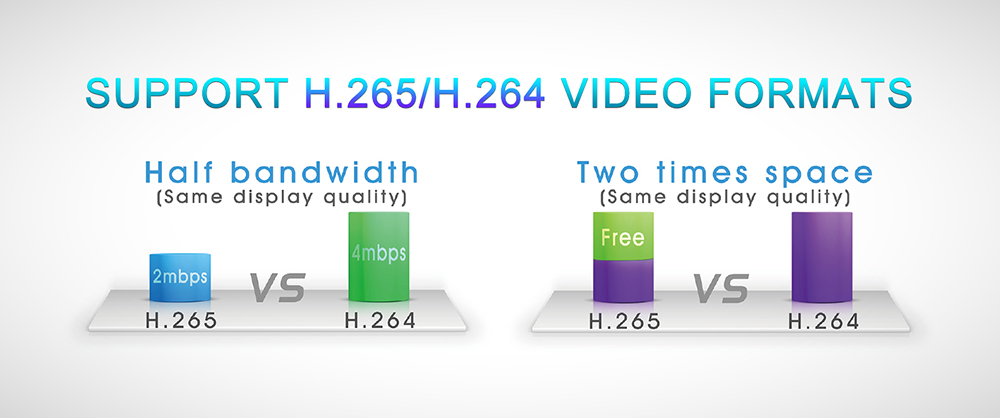

2. Support H.265 video compression, save more hard disk space, make sure your hard disk can record more details.

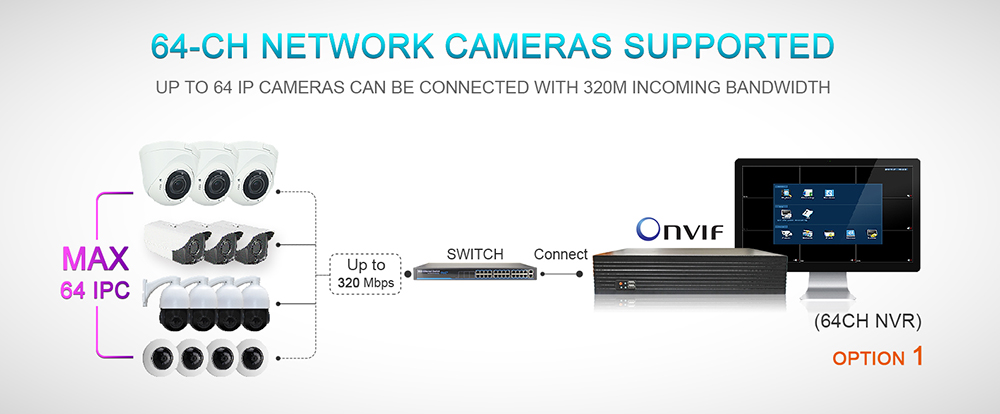

3. 64 CH cameras access simultaneously, 320M ultra bandwidth, every details you can be aware of.
4. Support 100V~240V 50Hz~60Hz power supply, make sure it is safe in any country of the world.

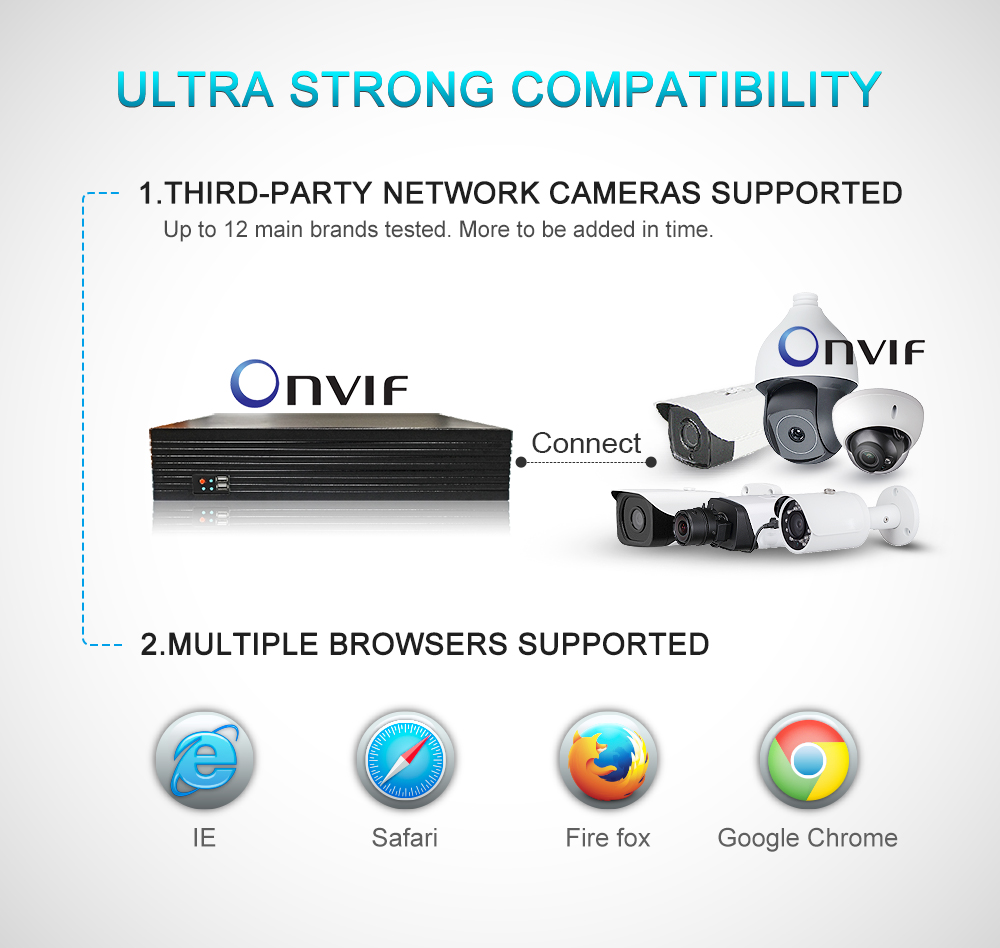

5. Strong compatibility, compatible with the famous brand camera of the third party and standard protocol Onvif camera.

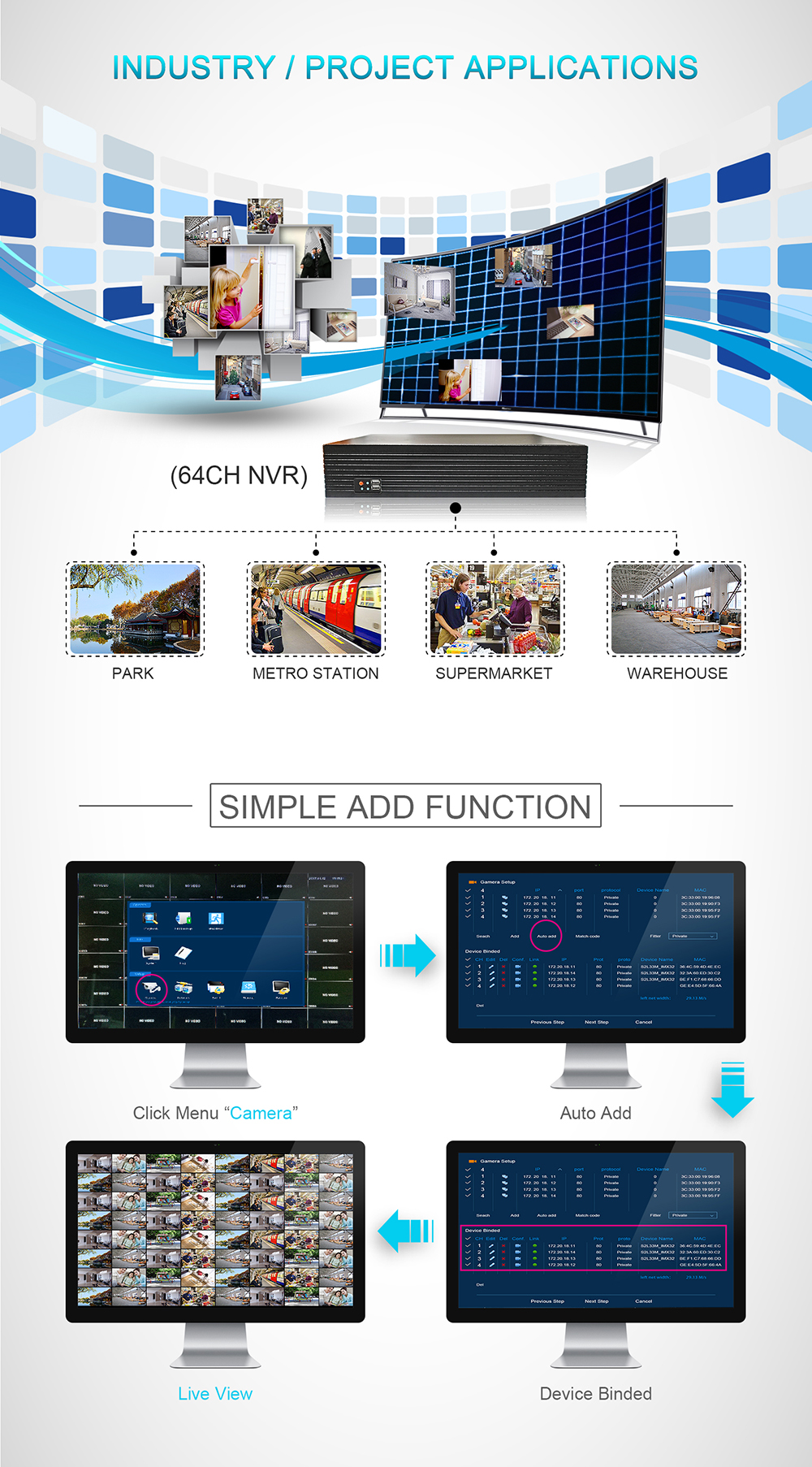

6. Easy operation, one-key add function, make everything simple.

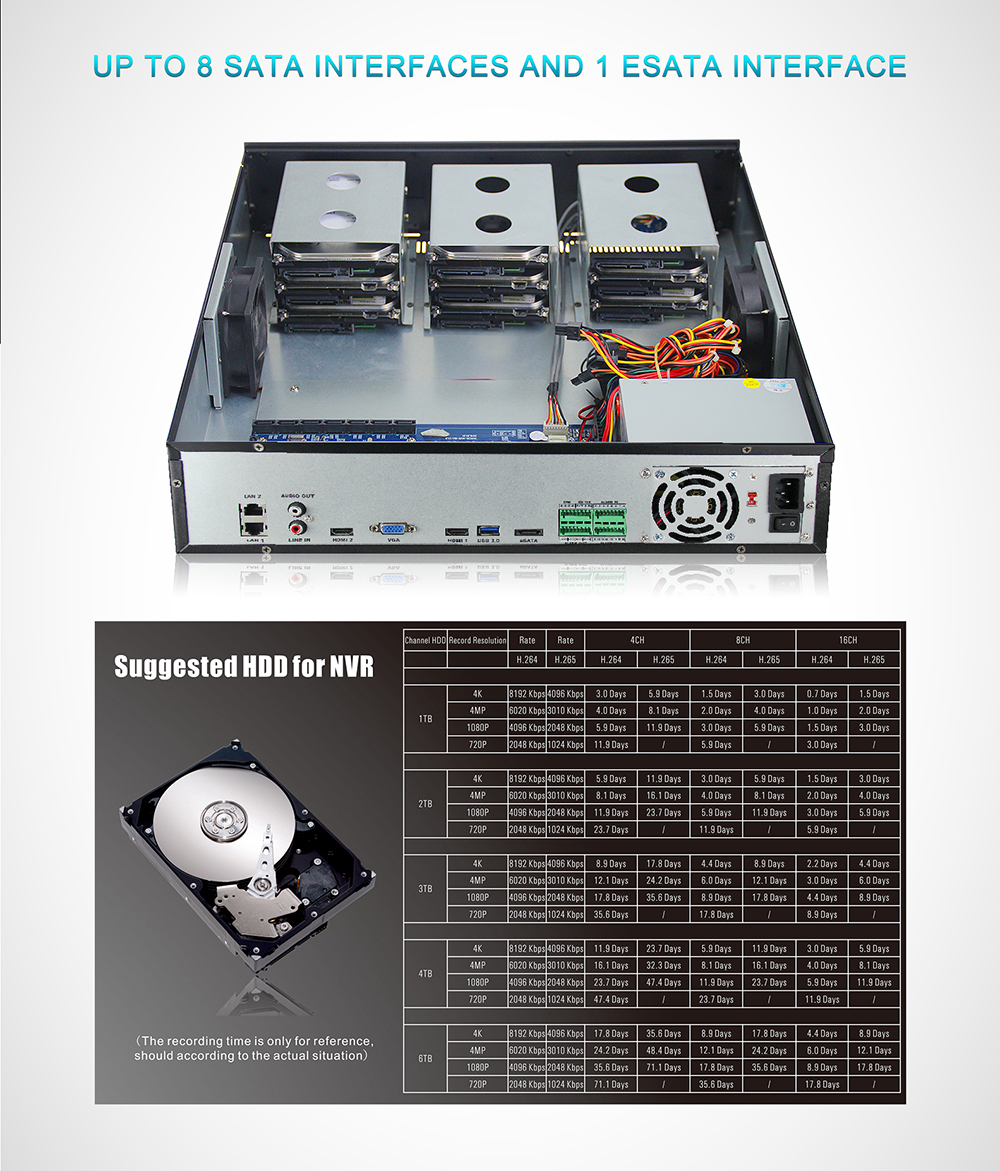

7. 8HDD & Recording

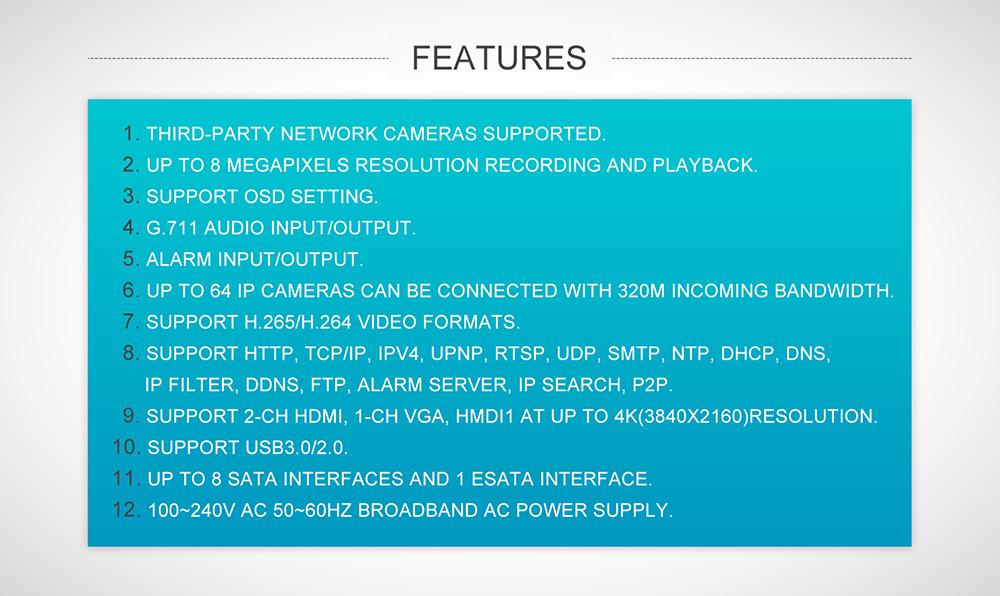

▼Main Features
▼Specifications
| Model | NVR3664L | ||
| System | |||
| Main Processor | ARM Cortex A17 Quad-core Processor | ||
| Operating System | Embedded LINUX | ||
| Video | |||
| Input | 64 Channel, Support 4096×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc, Incoming Bandwidth: 300MB | ||
| Output | 1 VGA, 2 HDMI | ||
| Audio | |||
| Input | 1 Port RCA | ||
| Output | 1 Port RCARCA (Linear, 1kΩ) | ||
| Audio Bit Rate | 64kbps | ||
| Audio Compression standard | G.711 | ||
| Alarm | |||
| Sensor Input | 16 | ||
| Output | 4 | ||
| Motion Detection | 64 Channel, MD Zones: 396 (22 × 18) | ||
| Trigger Events | Recording, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output | ||
| Display | |||
| HDMI1 | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | ||
| HDMI2 | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | ||
| VGA | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | ||
| Display Split | 64CHxD1/36CHxD1/25CHxD1/16CHxD1/9CHxD1/4CHxD1/1CHx1080P/1CHx3MP /1CHx4MP/1CHx5MP/1CHx4k | ||
| Digital Zoom | YES | ||
| OSD | Camera Title, Time, Video Loss, Recording, Motion Detection | ||
| Recording | |||
| Video Compression | H.264/H.265 | ||
| Resolution | 4k(4096×2160),5MP(2592×1944),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080),960P(1280x960) ,720P(1280×720),D1 (704×576/704×480) | ||
| Record Rate | PAL :4k@30×25fp,5MP@45×25fp,4MP@64x25fp,3MP@60×25fp,1080P@64×25fp, 960P@64×25fp,720P@64×25fp, D1@64×25fp NTSC: 4k@30×30fp,5MP@45×30fp,4MP@64×30fp,3MP@60×30fp,1080P@64×30fp, 960P@64×30fp, 720P@64×30fp, D1@64×30fp | ||
| Record Mode | Manual\Timer\Motion Detection | ||
| Playback & Backup | |||
| Local Sync Playback | 4 channelx4k | ||
| Remote Sync Playback | YES | ||
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection | ||
| Playback Functions | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Digital Zoom | ||
| Backup Mode | USB Device/Network | ||
| Network | |||
| Interface | 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces | ||
| Network Functions | HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, Alarm Server, IP Search, P2P | ||
| Onvif Version | Support Onvif 2.4 | ||
| Web Browser | IE6-11, Google Chrome (IE Tab), Firefox (IE Tab) | ||
| CMS Software | Support Windows XP / Windows Vista / Windows 7/ Windows 8 | ||
| Cloud Support(P2P) | Yes | ||
| Smart Phone | iPhone, iPad, Android, Android Pad | ||
| Storage | |||
| Interface Type | 8 SATA Interface | ||
| Capacity | Up to 48TB capacity | ||
| eSATA | 1 eSATA interface | ||
| General | |||
| Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian | ||
| USB Interface | 2 USB 2.0 Interfaces ,1 USB 3.0 Interface | ||
| RS485 | 1 Port, for PTZ Control | ||
| Power Supply | 100 to 240 VAC, 50 to 60 Hz | ||
| Working Environment | -10~55℃/10~90% | ||

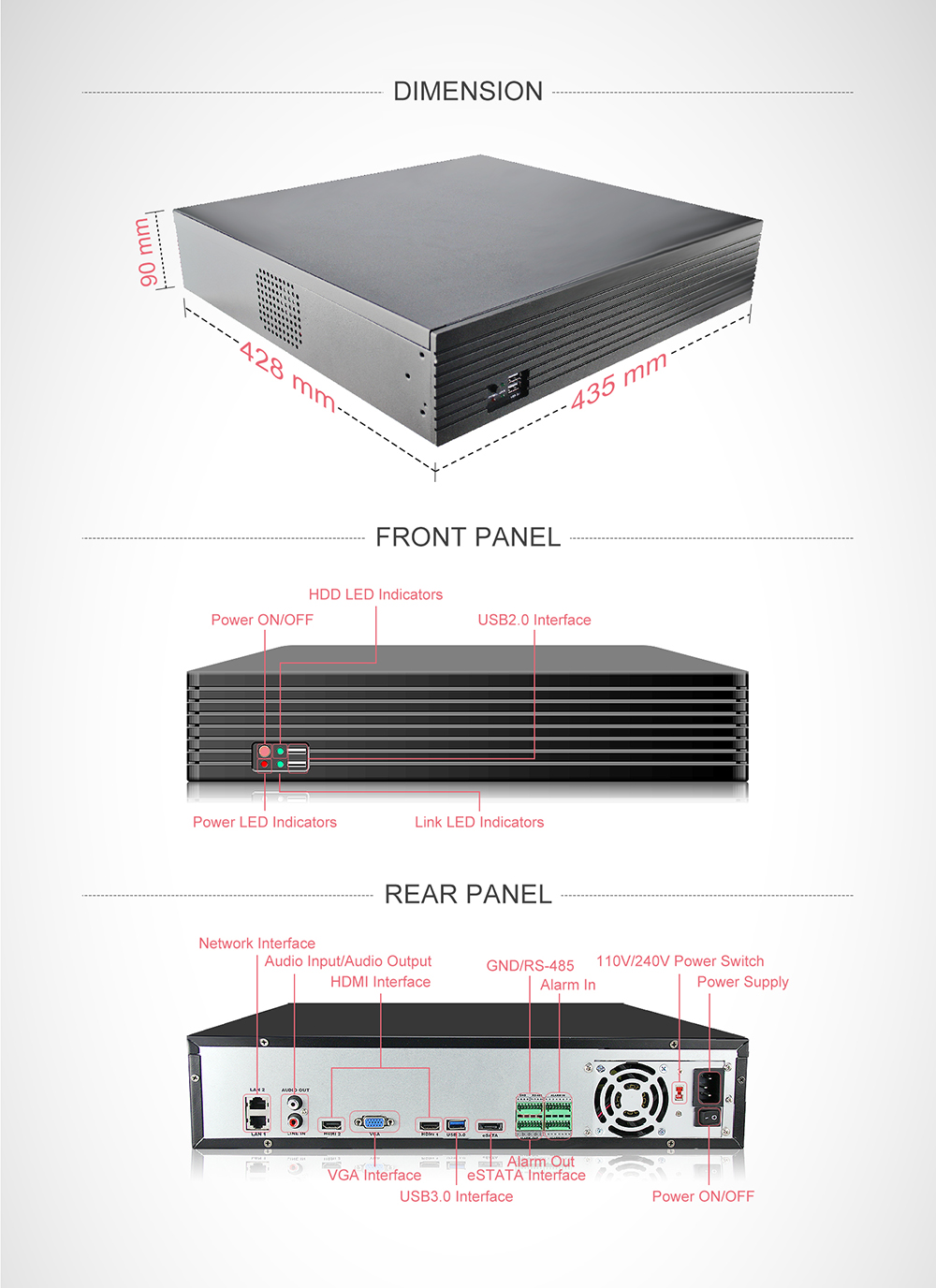

| Dimension(W×D×H) | 2U, 428mm×435mm×90mm | ||
| Weight | 9.8Kg（without HDD） | ||
Choose Longse, Choose Professional
