Specification                                                        Model:PT7B022T200

Sensor

1/2.9 type CMOS

Effective Pixel

2M

Focus Distance

4.7±5%~94±5%mm

Optical Zoom

22X

Aperture Value

F1.6~F2.7

View of Angle

D : WIDE 68.5o±5% TELE 4.2o±5%
H : WIDE 54.8o±5% TELE 3.4o±5%
V : WIDE 41o±5%   TELE 2.5o±5%

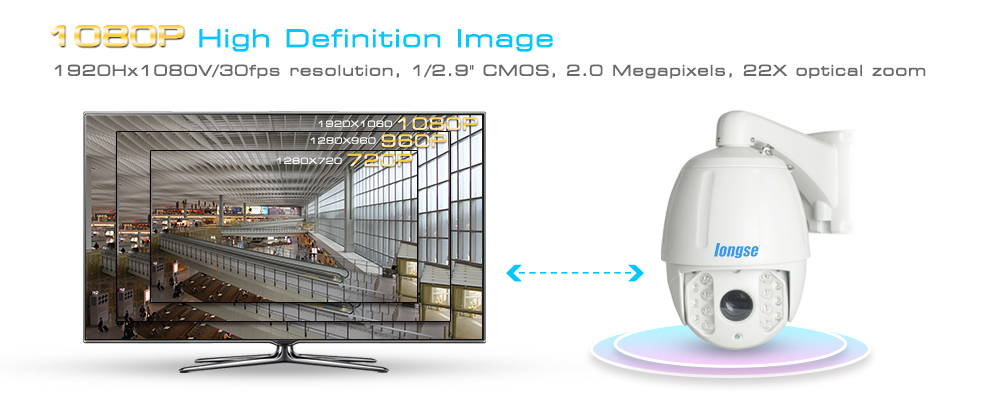

Resolution

1280H*720V/ 1920H*1080V

Output Pixel

1280Hx720V/24fps
1280Hx720V/25fps
1280Hx720V/30fps
1280Hx720V/50fps
1280Hx720V/60fps
1920Hx1080V/24fps
1920Hx1080V/25fps
1920Hx1080V/30fps

Camera module control interface

SONY VISCA(Signal level 3.3V), baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s stop bit: 1

HITACHI COMMAND (Signal level 3.3V),  baud rate: 4.8Kb/s, 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s, 57.6Kb/s stop bit: 1

IR-cut

Manual/Auto

Features

Communications Protocol

TCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP

Storage (optional)

One SD/SDHC card

Software Control

IE, CMS, Management Platform

Mobile View(optional)

Support Windows, Symbian, iPhone platform smartphone

Horizontal Rotation Speed

200°/s

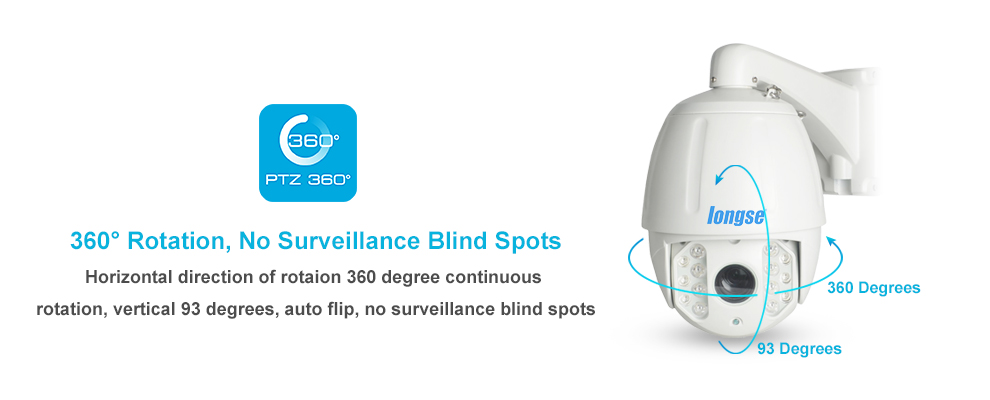

Horizontal Rotation Range

360°

Tilt Rotation Speed

100o/s

Tilt Rotation Range

90°

Auto Flip

Horizontal 180°, Vertical 180°

Auto Control IR LED

PWM

A-B Scan

User programmable

A-B Scan Speed

0-64 levels setting available

Dwell Preset

2-60s interval available

Preset Points

220

Go to Preset Speed

01-64 levels available

Guard Tours

4 groups

Guard Points

Max.16 points, dwell time user selectable

PWR On Action

Memory/Pattern 1/Tour 1/360° scan/A-B scan/Preset 1-8/None

Park Time

0-60mins available

3D Location

Support (DH-SD1)

Time Scheduling Function

8 tasks

Privacy Mask

Support

Auto Control IR LED

PWM

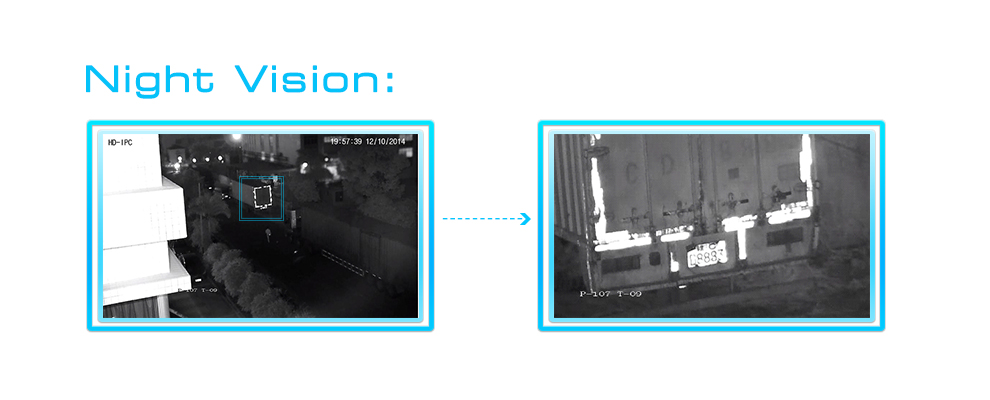

IR Illumination Distance

120m

IR LED

22*22=6,Ф16=5

Communication

RS485

Baud Rate

1200/2400/4800/9600bps

Operating Temperature

-40°- +60°

Operating Humidity

≤95% Non Condensing

Heater & Blower

Auto temperature control

Power Supply

AC/DC15-28V ≤2A

Power Consumption

≤ 20W

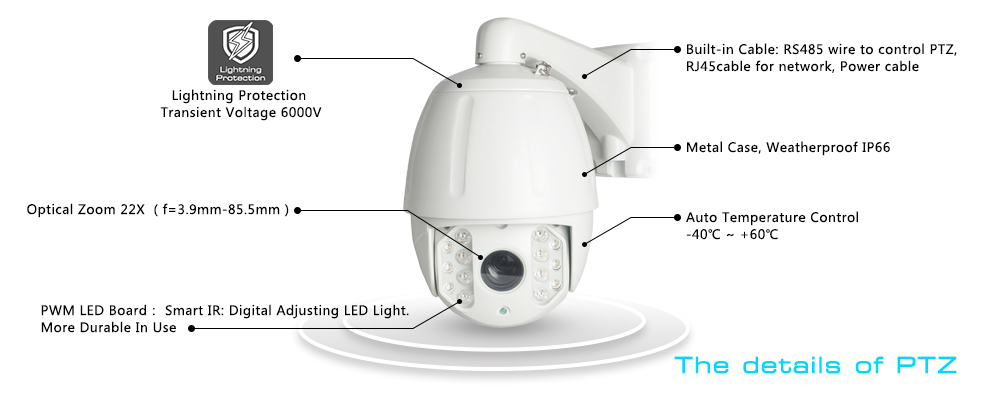

Lightning Protection

Transient voltage 6000V
