| System | |
| Main Processor | HI3521A |
| Operating System | Embedded LINUX |
| Video | |
| Input | SDI/EX-SDI: 4*4M/1080P/720P SDI/EX-SDI+Network:2*SDI/EX-SDI+7*network(Max 5MP) Network: 16*network(Max 5MP)(Total incoming bandwidth ≤80M) |
| Input | 4CH BNC |
| Signal Type | EX-SDI 1080P@25/30/50/60, EX-SDI 720P@25/30/50/60 HD-SDI 1080P@25/30/50/60, HD-SDI 720P@25/30/50/60 EX-SDI 1440P@25/30 Network |
| Output | 1 HD, 1 VGA, 1CVBS |
| Audio | |
| Input | 4Channel, RCA |
| Two-way Audio | NO |
| Output | 1 Channel, RCA |
| Alarm | |
| Sensor Input | NO |
| Output | NO |
| Motion Detection | 4 Channel(max 16 Channel in pure network mode) |
| Trigger Events | Recording, Alarm, Email, Screen tips, Buzzer |
| Email Alarm | Send Image to The Designated E-mail |
| PTZ | |
| Interface | RS485 |
| Protocol | Pelco-D, Pelco-P |
| Baud Rate | 110~921600 |
| Address | 0~255 |
| Display | |
| VGA | resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz |
| HD Output | Resolution:2560*1440/30Hz, 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz |
| Display Split | 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel |
| Privacy Masking | 3 Rectangular Zones (Each camera) |
| OSD | Camera title, Time, Video loss, Alarm, Motion detection, Recording |
| Recording | |
| Video Compression | H.264 |
| Audio Compression | G711u |
| Resolution | 4MP(2560×1440),1080P(1920×1080),720P(1280×720) |
| Video Quality | worst/worse/ordinary/well/better/best |
| Record Rate | Analog: PAL: 4MP(2560×1440 4*15fps);1080P(1920x1080 4*25fps),720P(1280×720 4*25fps), D1(720×480 8*25fps), CIF(352×288 8*25fps) NTSC: 4MP(2560×1440 4*15fps),1080P(1920x1080 4*30fps),720P(1280×720 4*30fps), D1(720×480 8*30fps), CIF(352×288 8*30fps) Pure IP: PAL:5MP@8×25fp,4MP@11x25fp,3MP@11×25fp,1080P@16×25fp,960P@16×25fp,720P@16×25fp,D1@16×25fp NTSC: 5MP@8×30fp,4MP@11×30fp,3MP@11×30fp,1080P@16×30fp, 960P@16×30fp, 720P@16×30fp, D1@16×30fp |
| Record Mode | Manual\Timer\Motion Detection |
| Playback & Backup | |
| Decode Capability | 4CH 1080P@30fps |
| Sync Playback | Pure Analog: 4CH 4M@15fps, 4CH 1080p@30fps Mix Mode: 3CH 1080P@30fps, 1CH 5MP@30fps Pure IPC: 2CH 5MP@30fps, 2CH 4MP@30fps, 3CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps |
| Remote Playback | 4 Channel / 1 Channel |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection |
| Playback Functions | Play, Pause, Stop, Fast play, Rewind |
| Smart Phone Playback | 4 Channel |
| Backup Mode | USB Device/Network |
| Network | |
| Interface | 1 RJ45 10M/100 Adaptive Ethernet Interface |
| Network Functions | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP |
| DDNS | Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES |
| Web Browser | IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53) |
| CMS Software | Support Windows 7/ Windows 8/Windows 10 |
| Extra Stream | D1/CIF(1~25fps) |
| Smart Phone | iPhone, ipad, Android ,Android pad |
| Hard Disk Driver | |
| Interface Type | 1 SATA Interface |
| Capacity | 2.5"/3.5" SATA, Up to 6TB |
| General | |
| Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek |
| UTC Control | YES |
| USB Interface | 2 USB 2.0 Interfaces |
| Power consumption | DC 12V ≤6W (Without Hard Disk) |
| Working Environment | -10~55℃/10~90% |

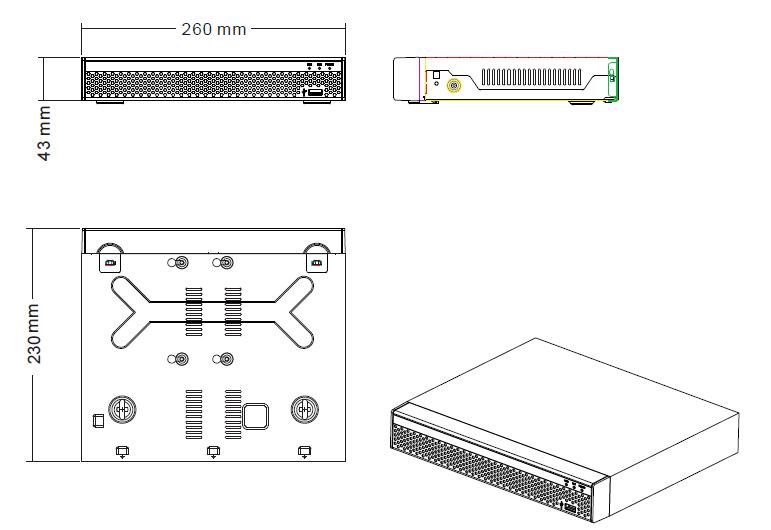

| Dimension (W×D×H) | 260*215*43(mm) |
| Weight | 2.0kg (Without HDD) |
