| Camera | |
| Image Sensor | 1/2.9" SONY Low Illumination CMOS Sensor |
| Resolution | 4MP |
| Effective Pixels | 3096 (H) × 2202 (V) |
| Compression | H.264/H.265/JPEG/AVI/MJPEG |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec |
| S/N Ratio | ≥52dB |
| Scanning System | Progressive |
| Video Output | Network, cvbs |
| Reset Button | YES |
| LENS Type | |
| Focus Length | Board Lens 1.05mm |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 5MP |
| Night Vision | |
| Infrared LED | 42µx 3PCS |
| Infrared Distance | 20M |
| IR Status | Under 10 Lux By CDS |
| IR Power On | CDS Auto Control |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP |
| ONVIF | Support ONVIF 2.4 |
| P2P | YES, Support QR Code |
| POE | Internal POE, Support IEEE 802.3af |
| Video Delay | 0.3S (Within the Lan) |
| Main Stream 1 | 2048*2048@15fps |
| Main Stream 2 | 1520*1520@20fps |
| Main Stream 3 | 1024*1024@20fps |
| Sub Stream 1 | 720*720@15fps 720*720@20fps |
| Sub Stream 2 | / |
| Sub Stream 3 | / |
| Tri Stream | 512*512@15fps 512*512@20fps |
| IE Brower | IE9-11, Google Chrome(Under Ver 45), Firefox(Under Ver 53), Mac Safari |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| Wireless | |
| Antena | 3dbi |
| Hotspot | / |
| Wi-Fi | Wi-Fi(IEEE802.11b/g/n),2.4Ghz |
| WIFI Range | No obstacles 300m Max. |
| Camera Features | |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) |
| Corridor Pattern | / |
| ROI | / |
| Defog Mode | Support |
| BLC | Support |
| HDR | / |
| WDR | Support |
| Motion Detection | Support |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/VMS/Web/SD Card |
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands, Czech |
| Interface | |
| Audio | 2-way audio(3.5mm audio interface) |
| Alarm | 1channel Input/Ouput |
| SD Card Slot | support 128G Micro SD With External SD Card Slot |
| RS485 | / |
| General | |
| Housing | Body:Metal, Bracket: Plastic |
| Anti-cut Bracket | NO |
| IR Cut Filter | YES |
| Operation Temperature | -20℃ ~ +60℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 950mA |

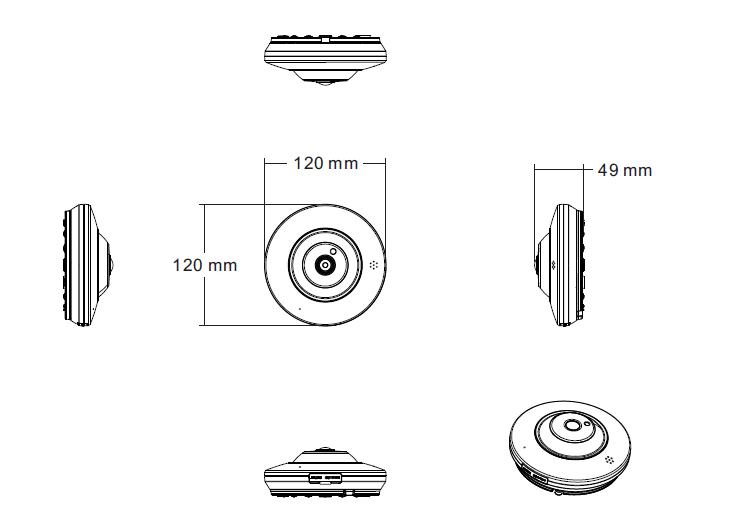

| Dimension | ￠120 x 49(H) mm |
| Weight | 500g |
